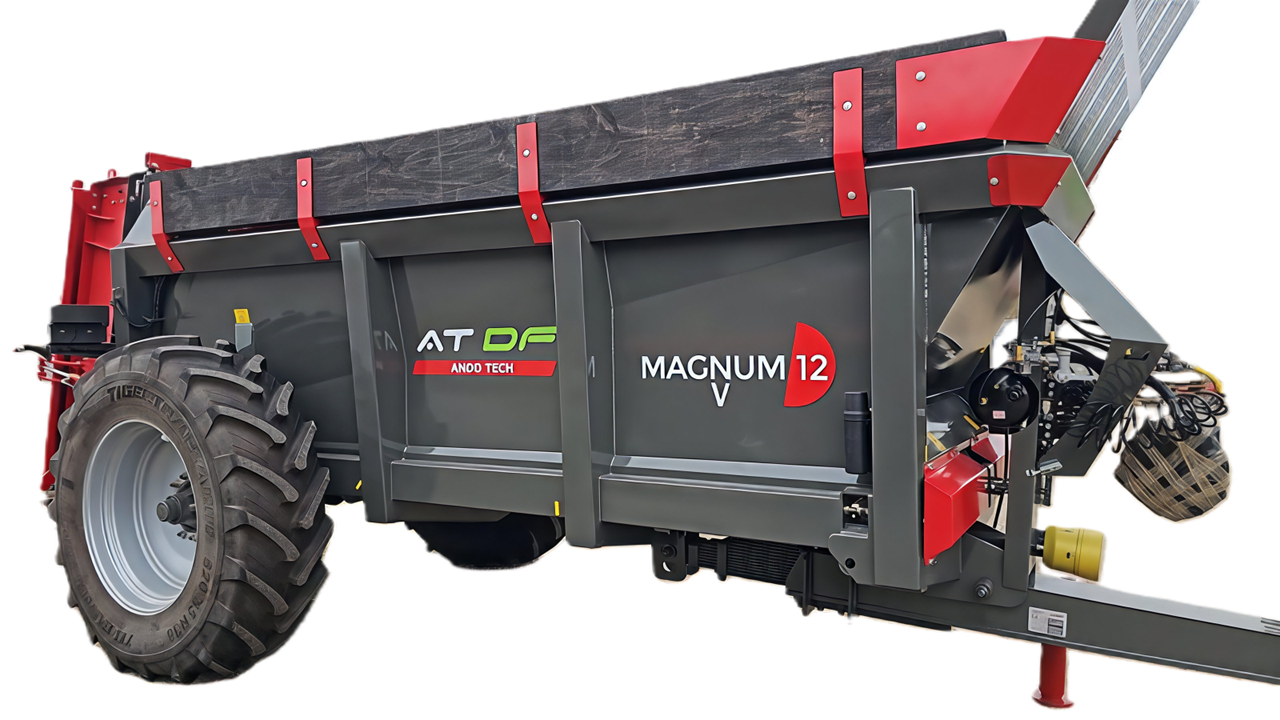

AT DF Magnum

AT DF Magnum spreader generation 6 is a high quality, modern

and robust design. The machine is entirely made of 6 mm sheet

metal and equipped with high quality accessories. A 5-year

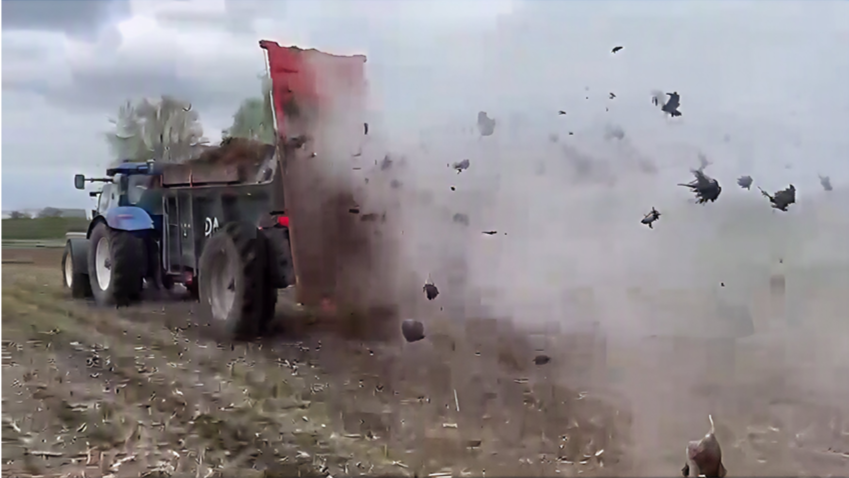

warranty is provided for long and reliable service. Magnum V

provides a uniform spread of manure over a field width of 12 to

15 meters. An additional adapter allows the spreading of lime and

fertilizer on a width of 6-7 meters.

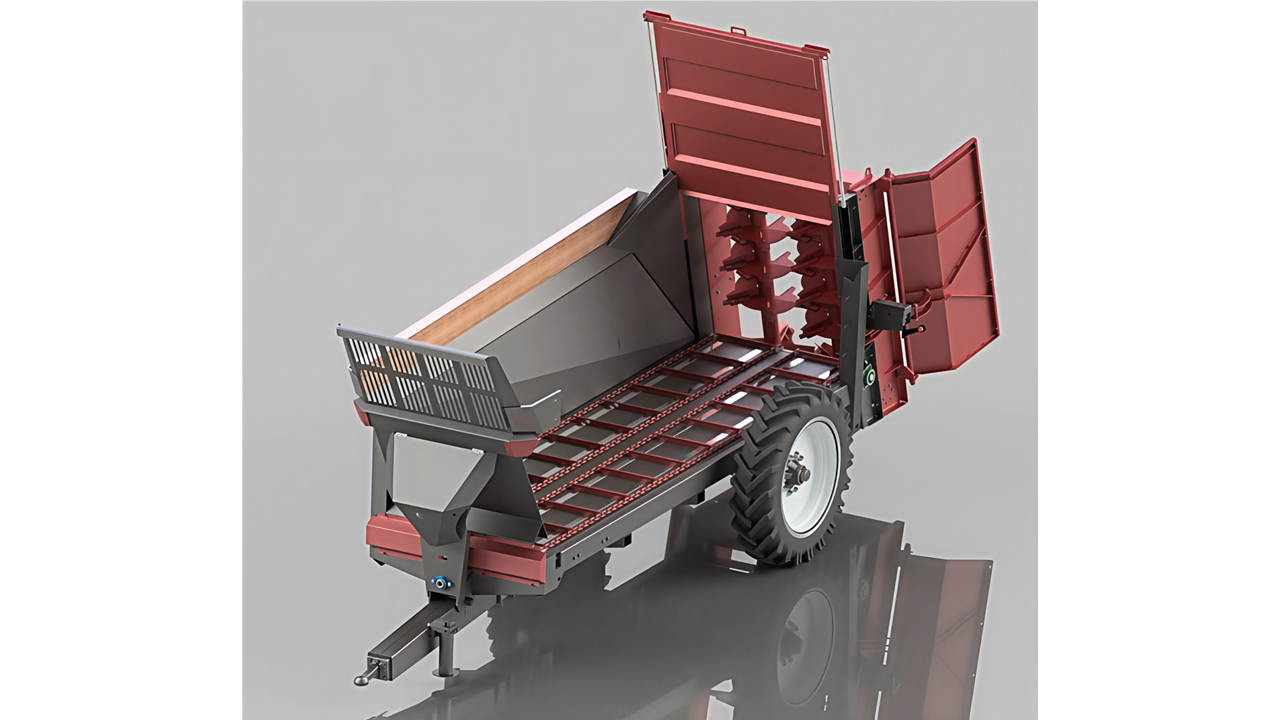

Construction:

- longest beams-stringers made of 200x100x5mm profile

- vertical supports made of bent 6mm sheet

- conveyor chains – solid and resistant (mining chains)

- hydraulic rear deflector

- hydraulic pipes hidden in side profiles - protection against

damage

- high quality SISP gearboxes

BED chains

- 4 row of transport chains

- Chain dimension Ø14x50 - DIN22 252

- Easy chain tension control by tensioner

- Easy replacement of scraper bars (screw mounted )

- 4 stainless steel chain slides

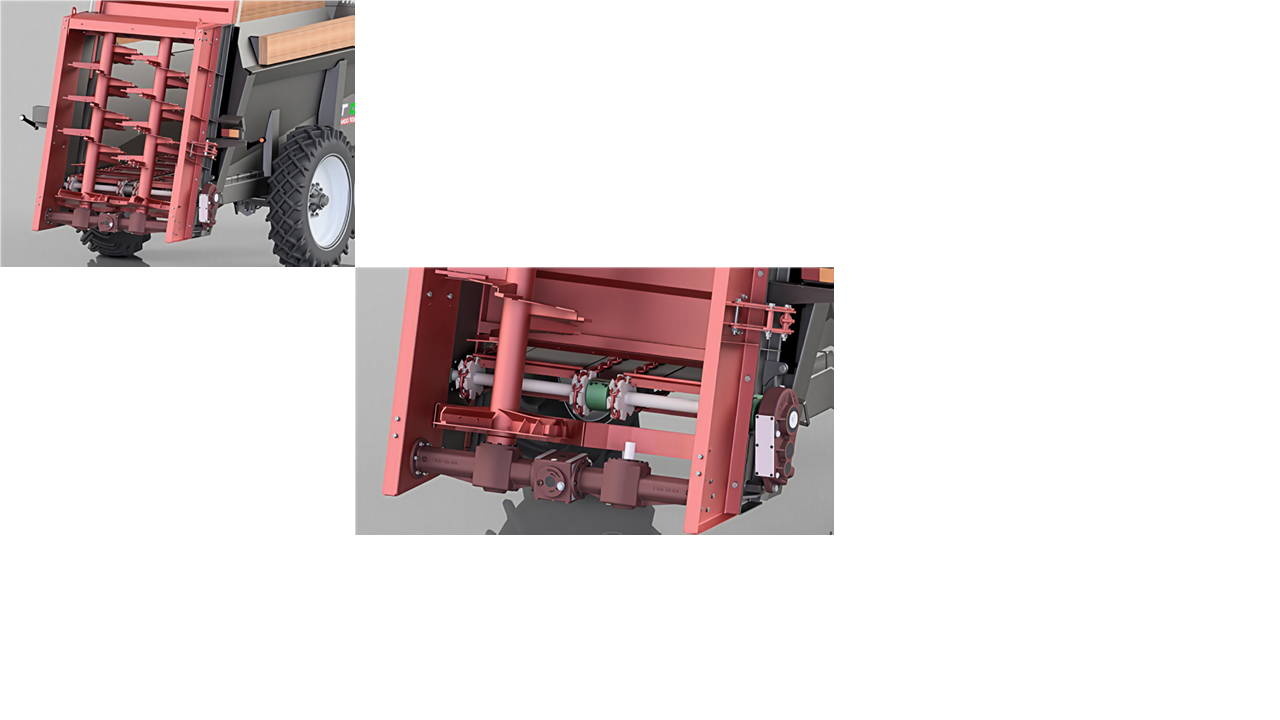

- split SKF bearing of the rear drive shafts

- controlled speed of the chain conveyor

Gearboxes

- Chain conveyor - gearbox SISP RH23204

- Spreader shafts – gearbox SISP RA208U108

- PTO Drive shaft T80 Z-20 Comer

Standard equipment

- mechanical rear deflector

- wooden extensions

- hydraulically lifted rear gate

- 1.8m spreader shafts

- shaft blades made of HARDOX steel, thickness 15mm, easy

replacement

- lower shafts disc designed of star shape made of 6mm HARDOX

- pneumatic brakes

- complete lighting (front lights, marker lights, rear lights)

- removable rear adapter

- hydraulic support jack

- drawbar with leaf spring

- inspection ladder

Optional equipment

- steel extensions

- wooden extensions

- hydraulic rear deflector
