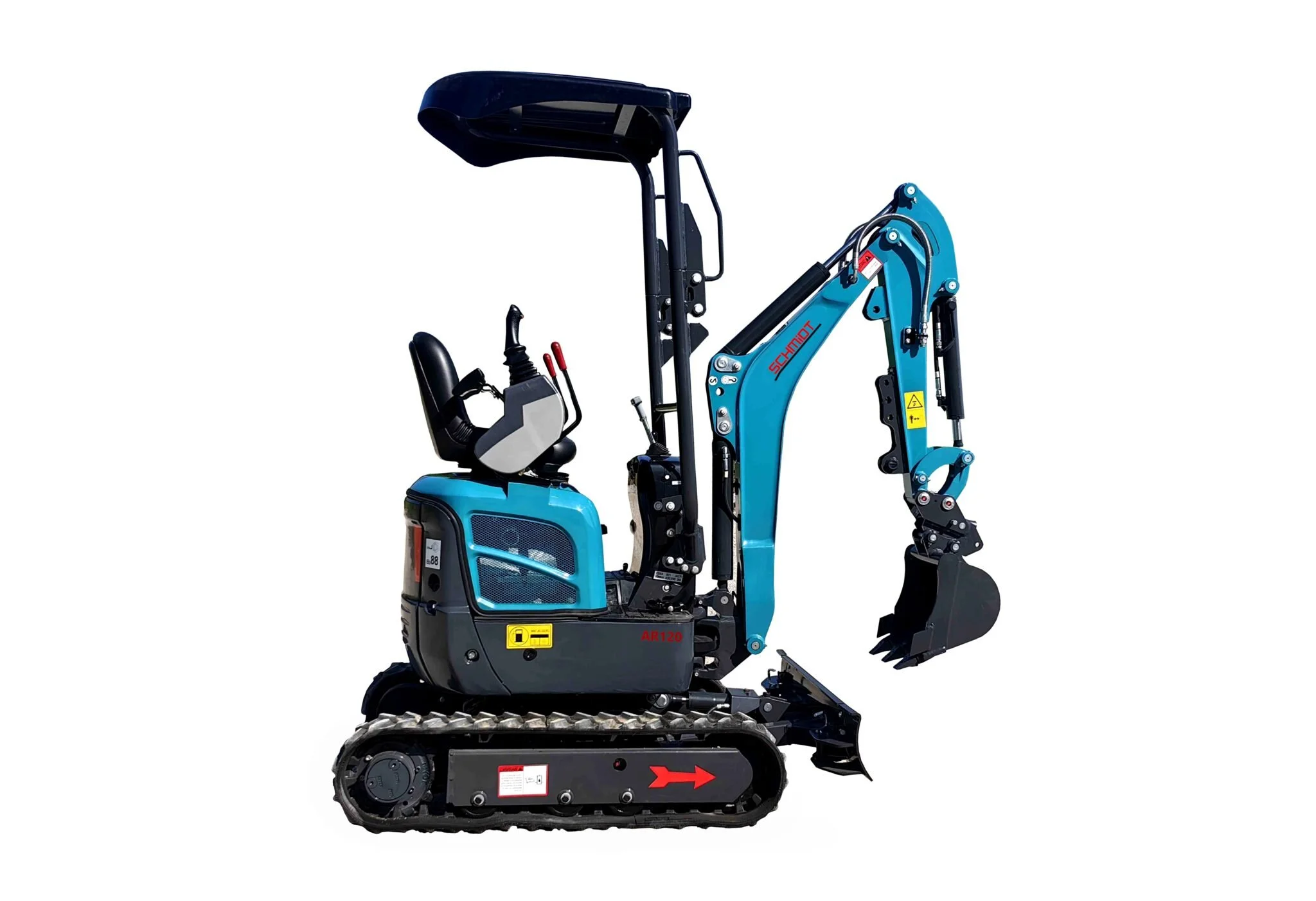

The AR120 is a versatile and powerful machine, ideal for gardening, farm and landscaping. Equipped with a 719 cc Kubota D722 engine, it delivers 10.2 kW of power at 2500 rpm. Its low weight (1200 kg) allows it to be easily manoeuvred in confined spaces.

Thanks to rubber tracks and high ground clearance (140 mm), the AR120 can work on a wide variety of terrain without damaging the ground. With a maximum digging depth of 1805 mm and a maximum dump height of 2225 mm, it is the ideal tool for a variety of construction and agricultural tasks.

An advanced 21 l/min gear pump hydraulic system with an operating pressure of 17.2 MPa ensures reliability and efficiency. In addition, the machine is equipped with a blade with adjustable width (750/990 mm) and height (200 mm), which increases its functionality and versatility. The AR120 excavator is an excellent choice for professionals and amateurs working in the field.

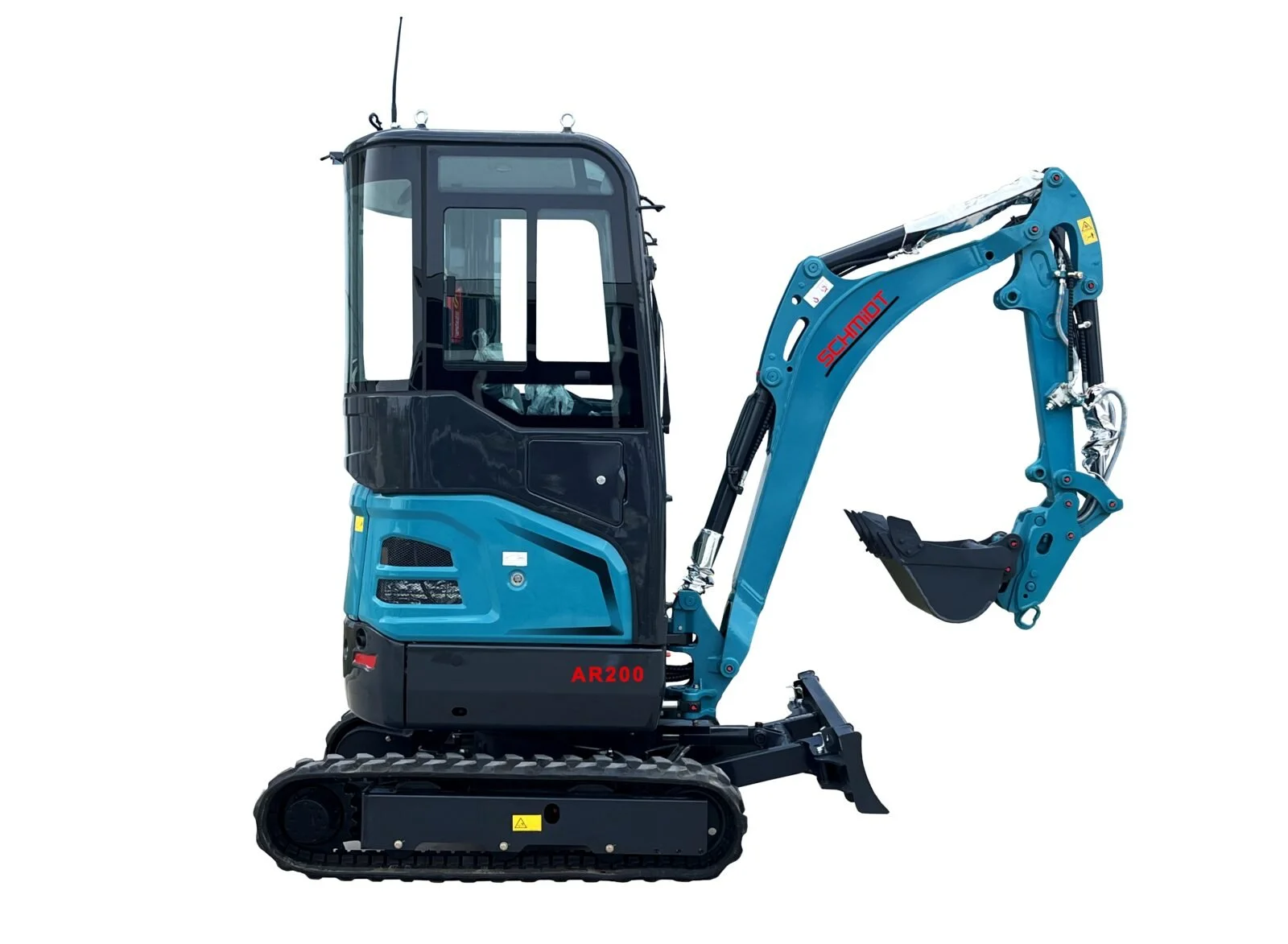

The AR200 swivel arm excavator is a compact and versatile machine designed to work efficiently in tight spaces. Equipped with an enclosed cab, it ensures the comfort and safety of the operator in all weather conditions. With a payload of 1980 kg and a bucket capacity of 0.04 m³, it is ideal for light to medium digging tasks.

The Kubota D902 engine complies with Euro 5 emission standards and delivers 11.8 kW of power, which guarantees sufficient efficiency with low fuel consumption. The machine offers a wide working range with a maximum digging depth of 2270 mm and a maximum discharge height of 2480 mm. Rubber tracks provide good grip and minimize damage to the surface.

The model is equipped with advanced hydraulic systems, including an axial-piston pump with adjustable displacement and an additional hydraulic line, which allows the use of a variety of attachments. Two-speed speed and extendable chassis increase versatility and adaptability to different terrain conditions.

Thanks to its compact dimensions and high manoeuvrability, the machine is ideal for working in confined spaces such as construction sites, gardens or building interiors. The blue and grey colours and the standard 450 mm bucket complete its attractive appearance and functionality.

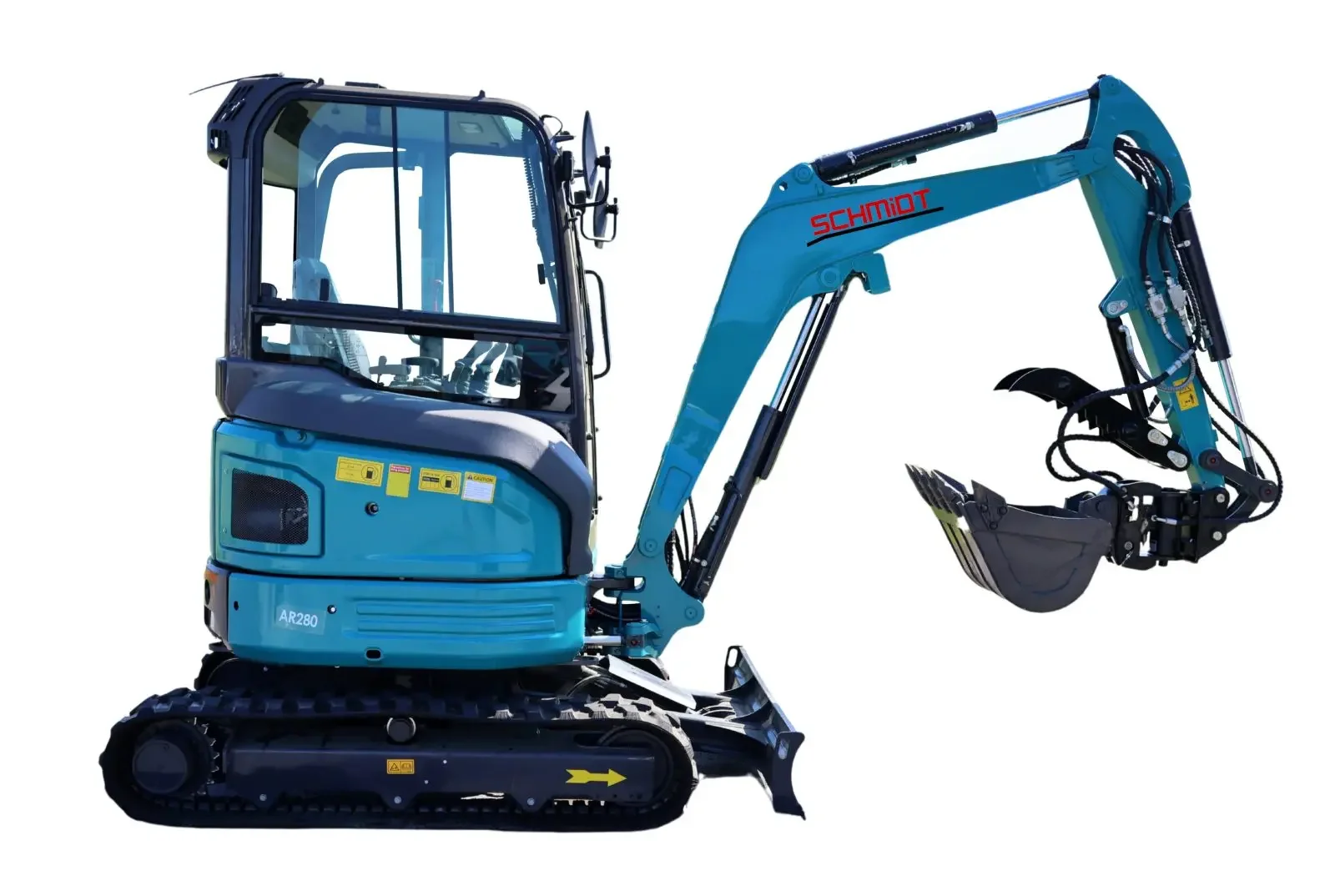

The Schmidt AR280 is a compact machine weighing 2780 kg, designed for earthmoving in confined spaces. It is equipped with a reliable 18.2kW Kubota D1305 engine, with direct fuel injection and liquid cooling, which ensures stable and economical operation.

The machine offers good working performance thanks to the bucket digging force of 23 kN and the robust hydraulic system with a capacity of 82.8 l/min. The maximum digging depth is 2800 mm and the reach reaches 4750 mm, making it suitable for a wide range of construction and installation applications.

Compact dimensions (width 1500 mm) and small turning radius allow easy manoeuvring in tight spaces. In addition, the machine can be optionally equipped with air conditioning, which increases the comfort of the operator during work.

• Kubota D1703 Euro 5 engine – power: 18.5 kW

• Pump & Valve – Hengli Brand

• Driving engine – Eddie brand

• Slewing bearing – Eddie brand

• Central rotary joint – Ruichen brand

• Hydraulic Breaker Pipeline System

• Fully hydraulic remote control system

• Swivel boom

• Two speeds

• Tailless structure

• Hydraulic control

• Fully opening bonnet
