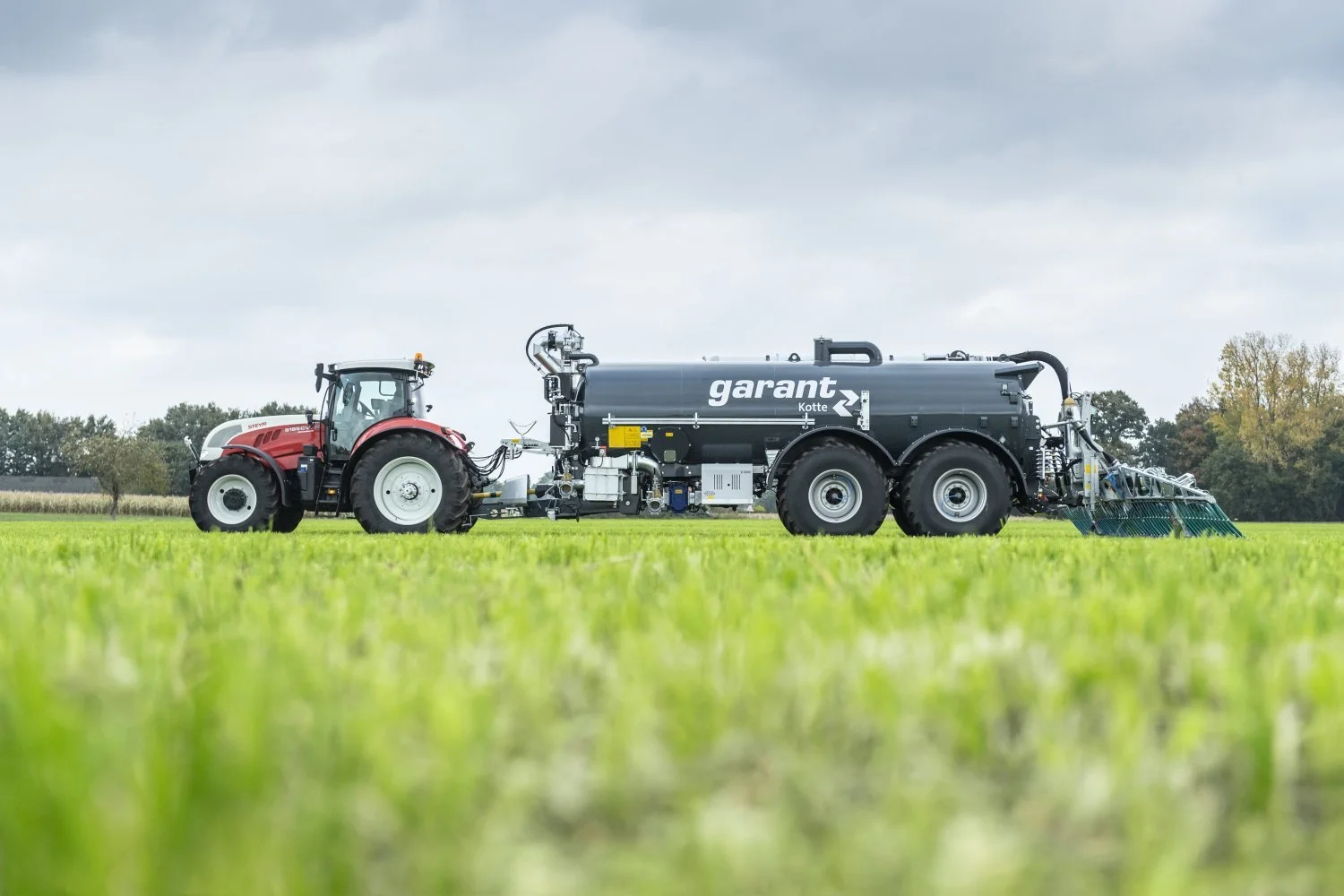

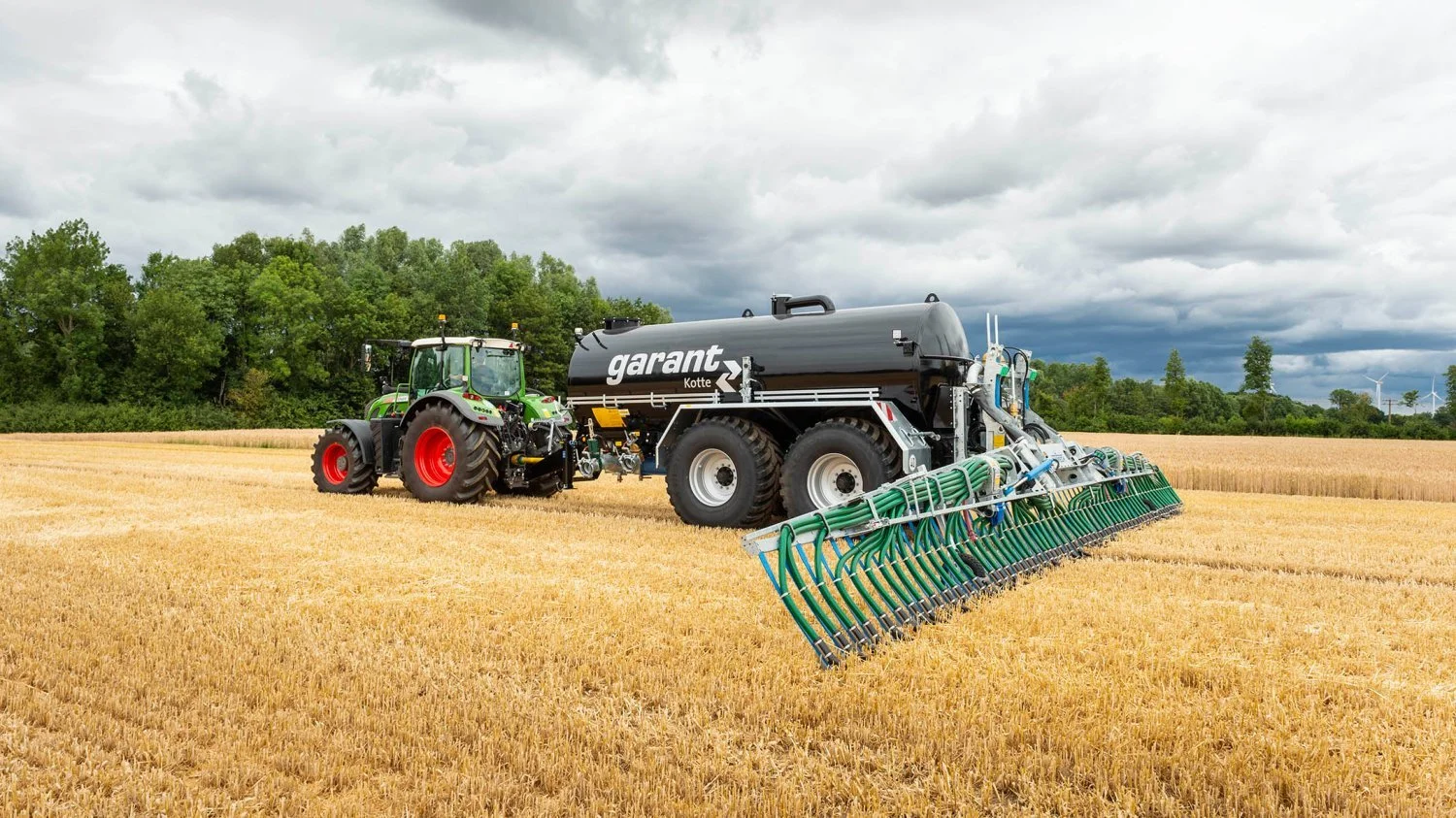

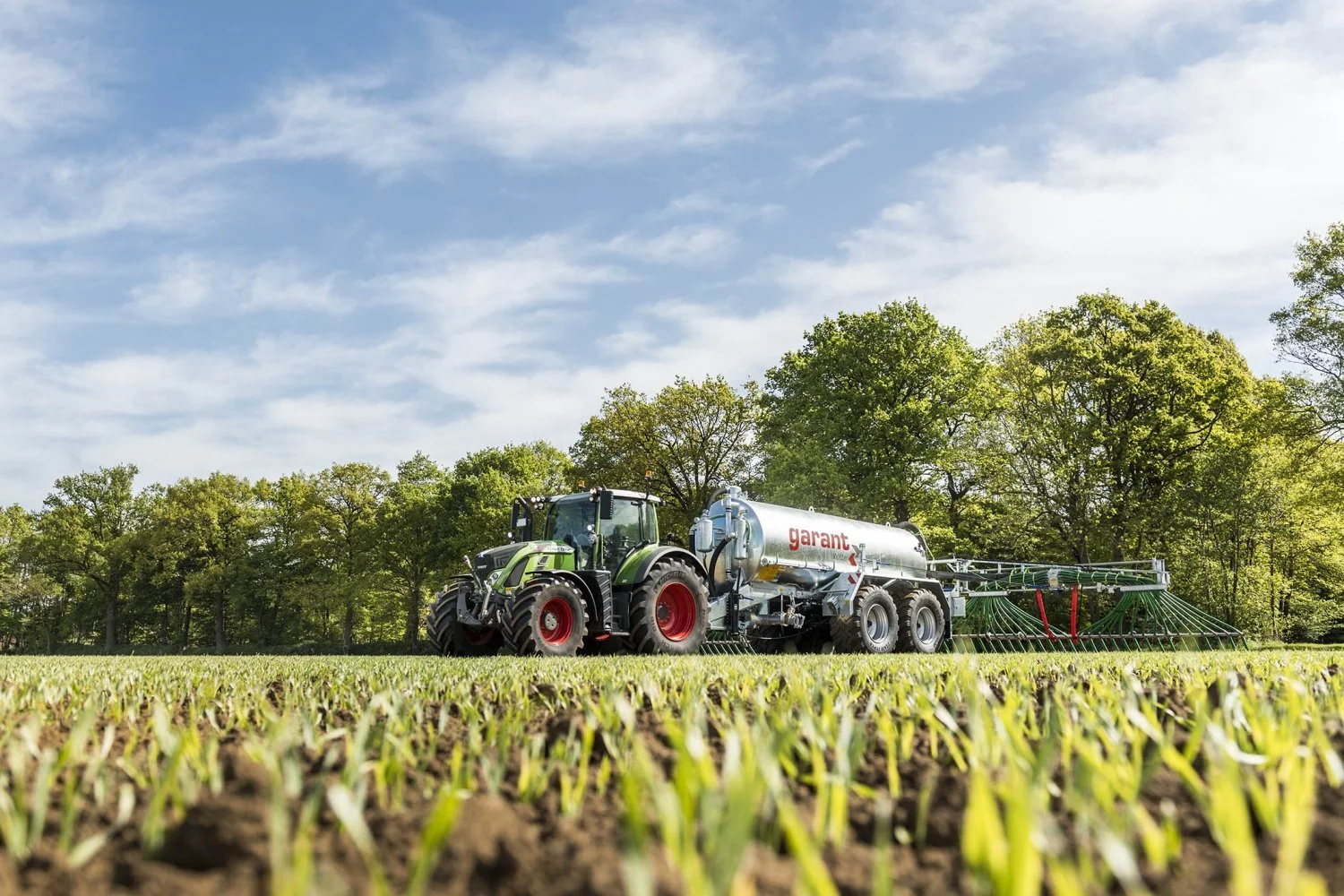

Slurry tankers
Tankers with lobe pump
Extremely Powerful
Garant-Kotte tankers with lobe pump provide you with maximum efficiency particularly for great suction depths and difficult suction conditions.
The features at a glance:
1-3 axle slurry tankers
Tank sizes of 6m3 to 32m3
Steel tanks from German quality production
How it works

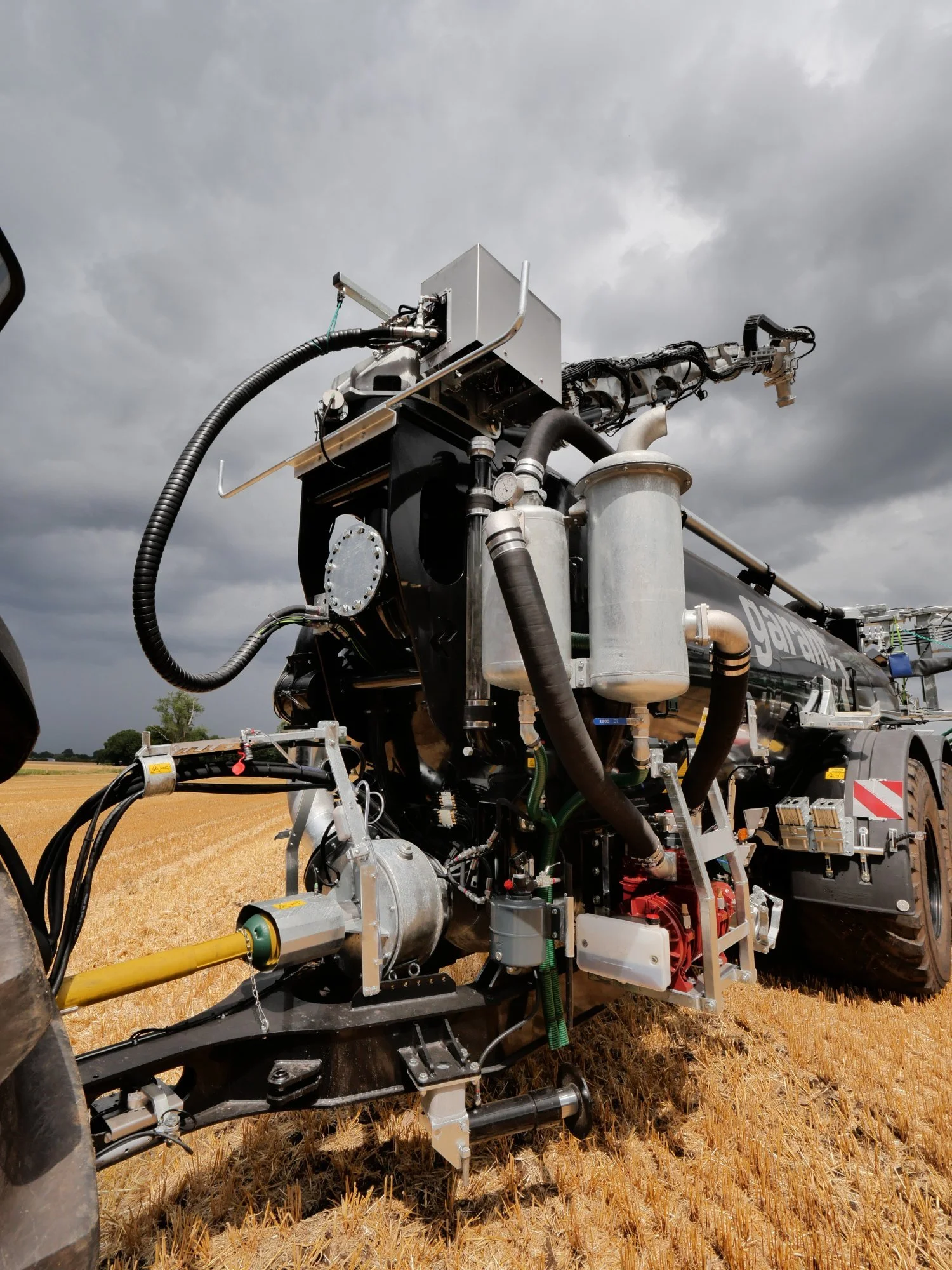

On the Garant-Kotte tankers with lobe pump, the pump is mounted beneath the filling level of the pump boxes. This position ensures maximum efficiency: It guarantees consistently high suction performance, while simultaneously preventing the pump from running dry.
The suction effect of the lobe pump is generated by a pair of pistons steadily rotating inside the pump. The slurry flows into the tank through a pressure pipe mounted on top of the tank. This pressure pipe is laid in flow-optimised manner, such that the pump performance is used to its optimum extent. A float in the back panel of the tank reliably measures the filling level and activates an automatic shut-off system as soon as the maximum filling degree is reached.
A pump sump and an "upright" suction pipe in the tank ensure that the barrel is completely and optimally emptied during discharge. Three-way valves make it is easy to comfortably switch between the functions of "filling", "discharging" and "agitating".
Basic Equipment
-
Rigid hitch
K80 ball
high driving comfort and ease of towing
higher drawbar loads can be achieved

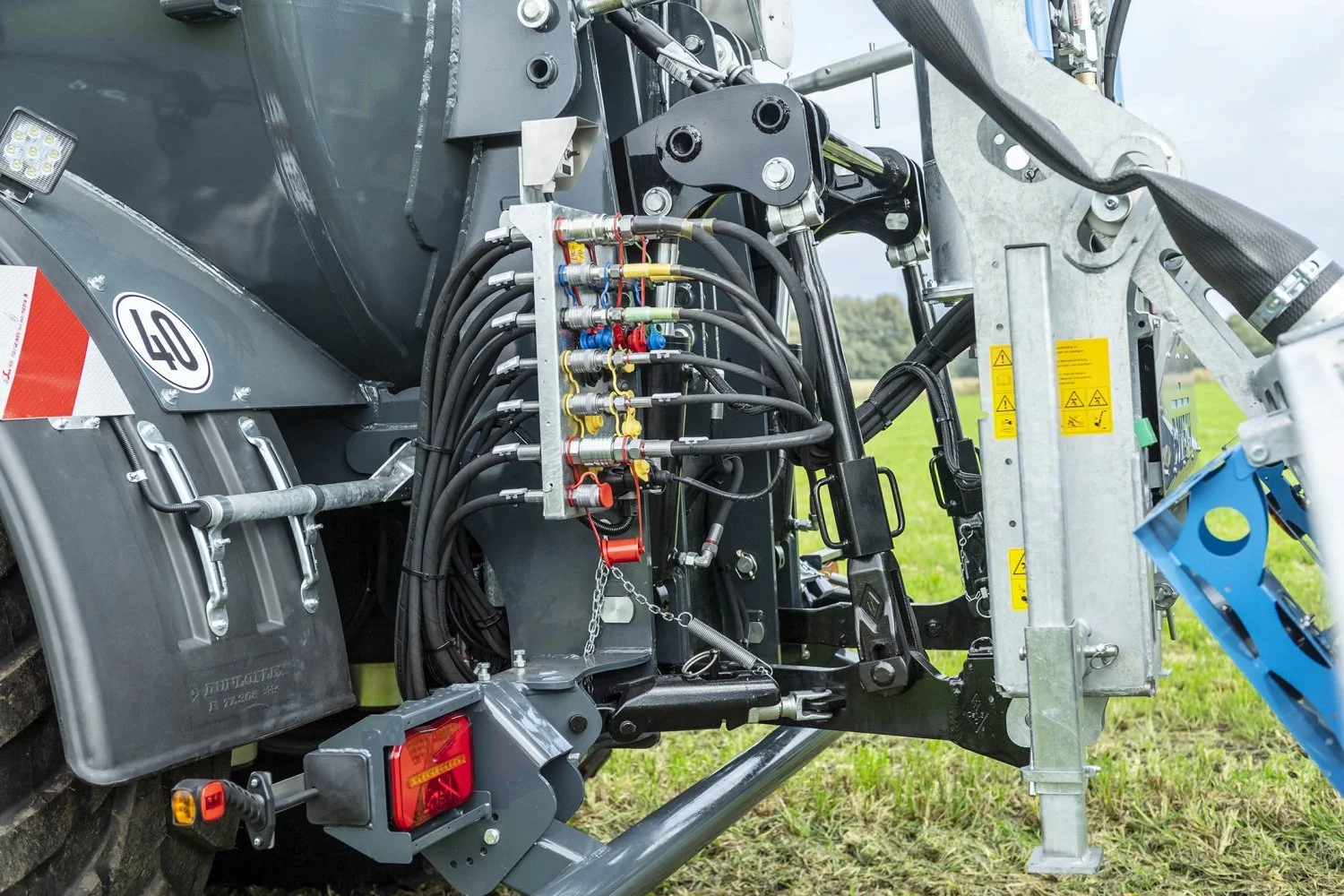

Bottom hitch with drawbar suspension
K80 ball
Highest driving comfort
Adjustable to different coupling heights
Slope of the slurry tanker adjustable
-
Individuality is important to Garant-Kotte right from the start. For this reason, they customise all tanks to the respective chassis and the desired tyre size.
Tanks are manufactured in a special low-profile design and thus offer you optimum driving comfort – both on the road and in the field.
Every Garant-Kotte tank offers reliable corrosion protection. You can choose between galvanising or a special internal coating in combination with a coloured exterior paint. -

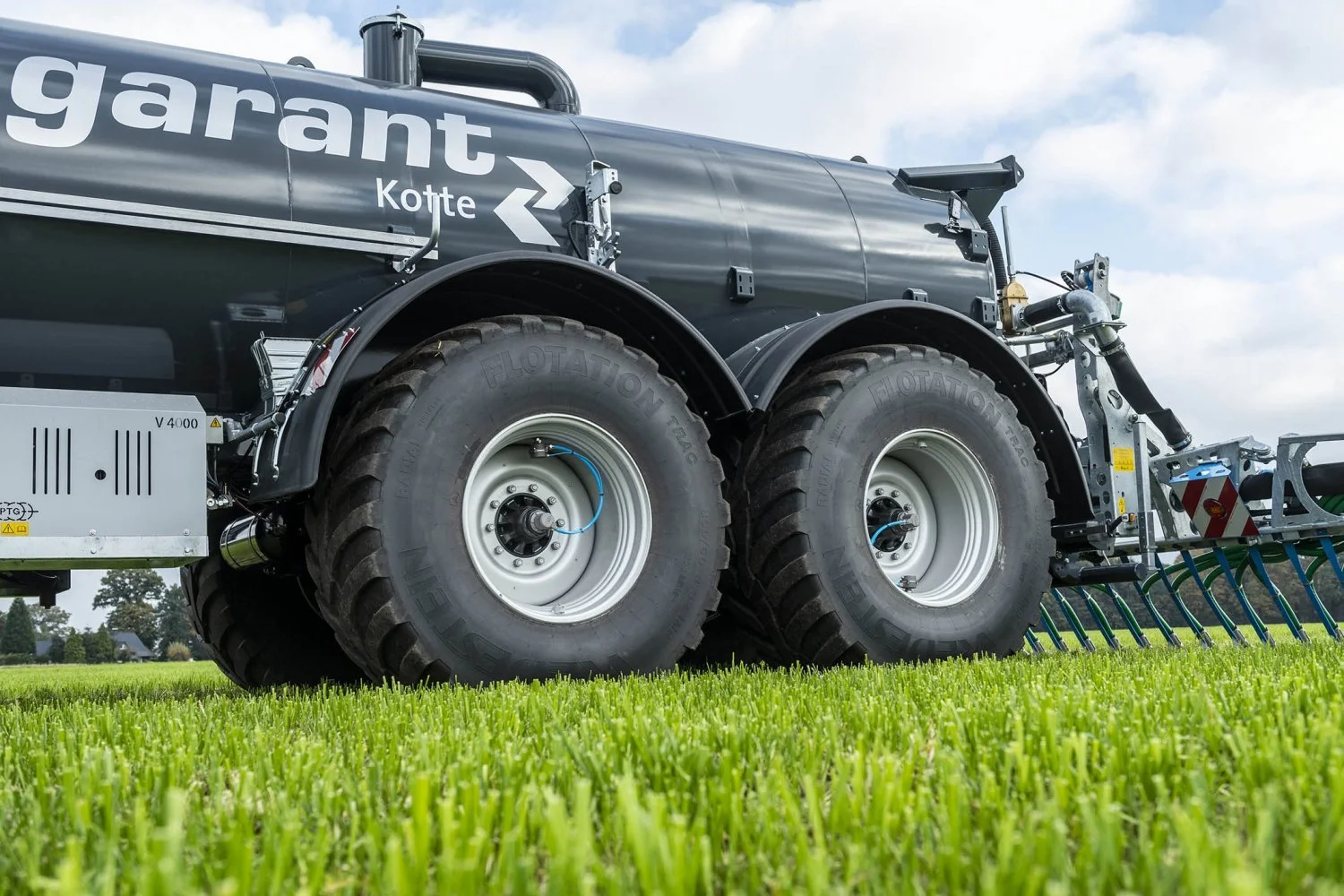

Tyres are not just tyres
Tyre type, tread and size must be perfectly adapted to the usage. Garant-Kotte has the right tyre for all operating conditions and any type of soil available. Garant-Kotte exclusively rely on renowned manufacturers such as Vredestein or Trelleborg.
The features at a glance:
Radial and cross-ply tyres
Diameter from 22.5 to 42 inch
Widths between 385 and 1050 mm
-
Move large quantities
Lobe pumps achieve a suction performance of 4,000 up to 14,000 litres per minute. Furthermore, the lobe pump enables particularly consistent and homogeneous slurry discharge.
Finally, these pumps are very user-friendly in terms of service and repair work. Lobe pumps from Vogelsang and Jurop available for you.
-
Proven and reliable
In order to ensure a high degree of reliability, Garant-Kotte exclusively use original BPW axle assemblies. All BPW chassis are individually adapted to your vehicle to guarantee optimum driving safety. In doing so, we take the gross vehicle weight rating, the tyres and the application into consideration.
Technical features of our chassis:
Square axle up to 150 mm x 150 mm
Brake drum up to 410 x 180 mm
TÜV certification up to 60 km/h
Prepared for tyre pressure control systems
-
Intelligent steering and fuel-saving
Steering axles improve manoeuvrability and track accuracy, which considerably reduces tyre wear and the load exerted on the entire chassis. Furthermore, you save fuel by means of a steering axle due to the fact that the slurry tanker is significantly easier to pull. Less friction additionally protects the ground and the sward.
Hydraulic forced steering
Straightforward and robust system
Large steering angle possible
Electro-hydraulic forced steering
ElectronicSteeringSystem (ESS 2.0)
Simple connection, as no steering linkage is required
Manual steering possible via control unit
Electro-hydraulic steering system
MultiSteeringSystem (MSS)
All axles are steerable
Adjustable steering strategies, e.g. also travelling in crab-steering mode
Supplementary Equipment
-

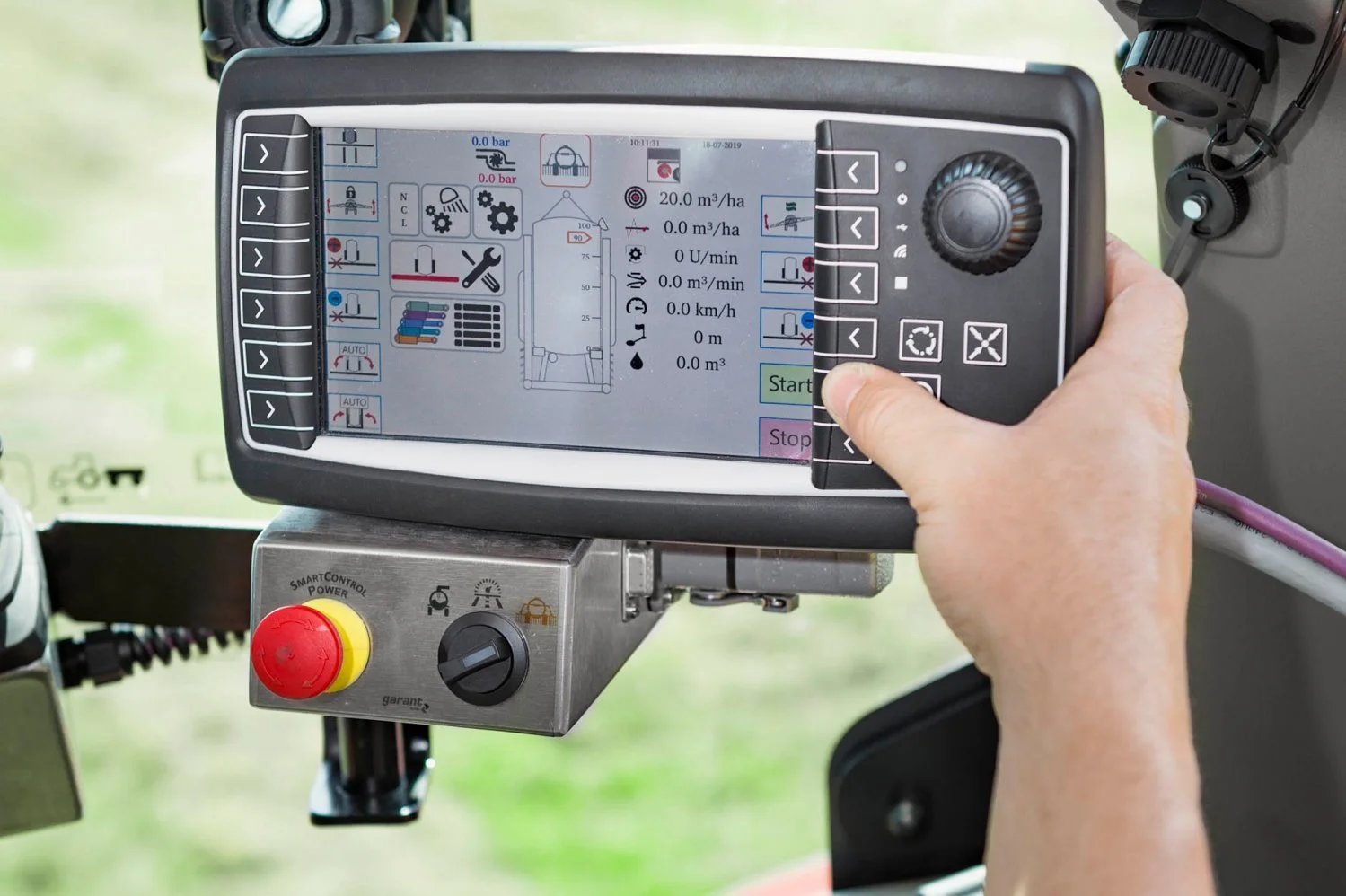

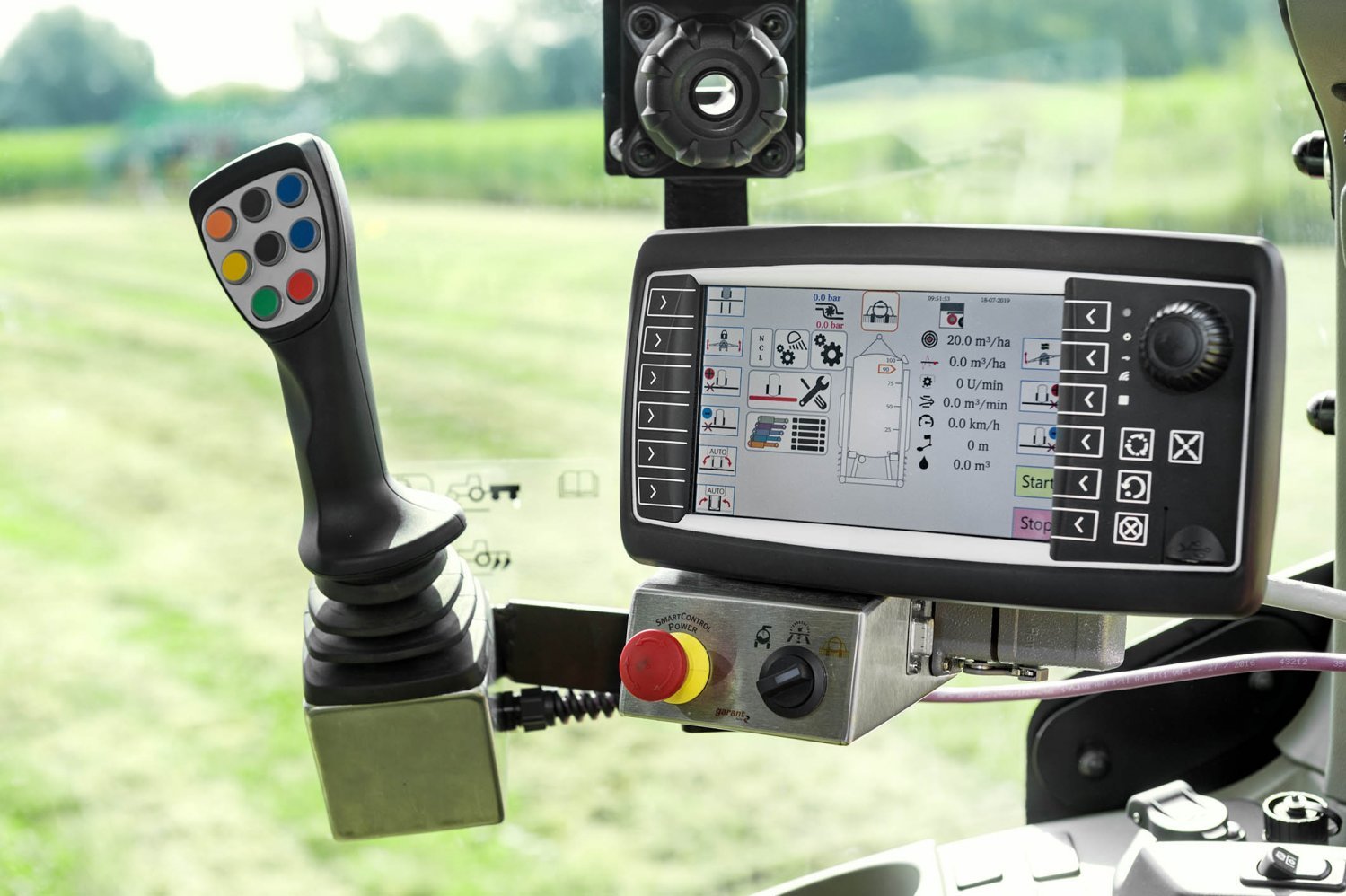

Exact control without delay

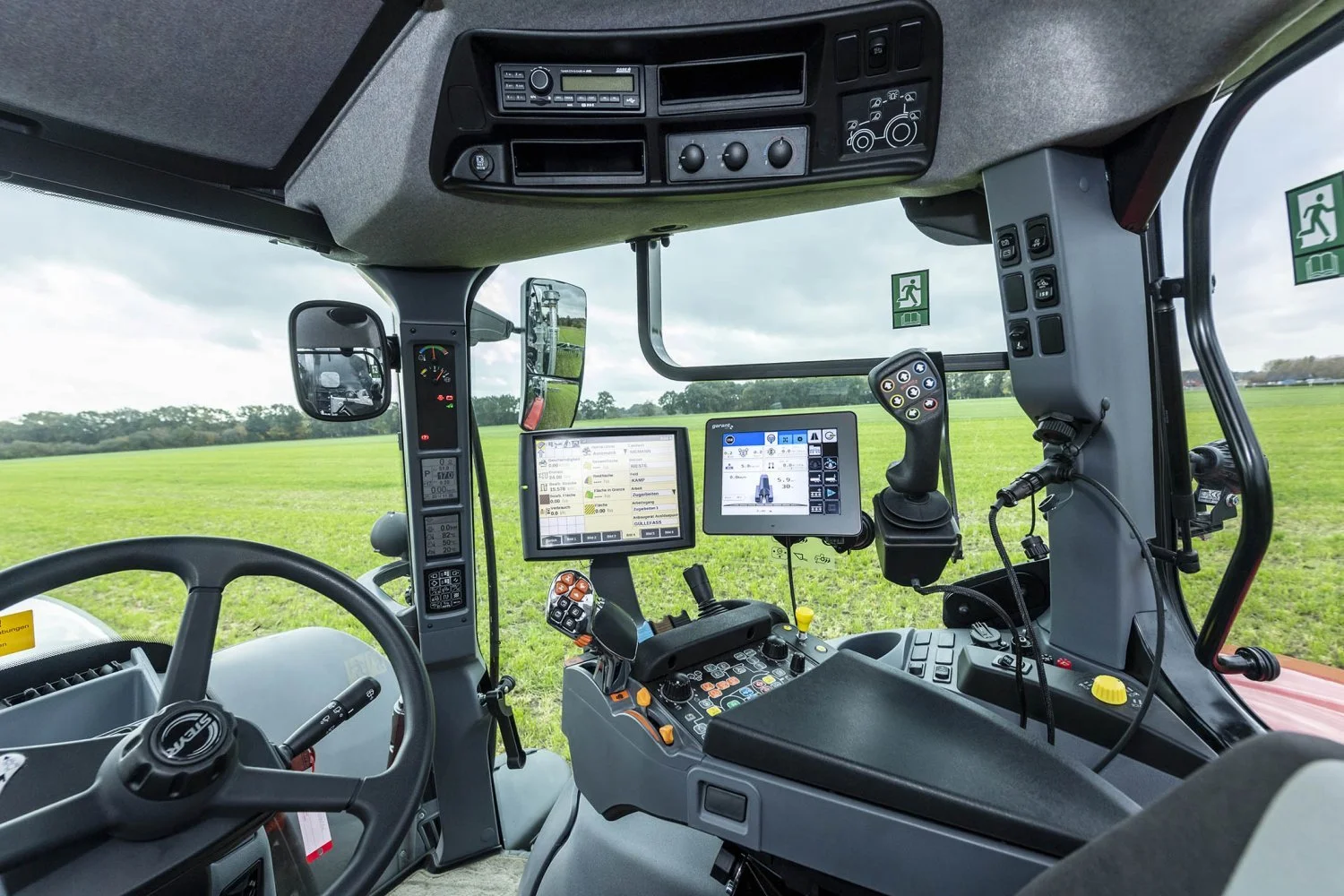

Pump tank trucks equipped with lobe pumps can be perfectly controlled by means of an on-board hydraulic system. This system powers the lobe pump via a separate power unit, thus making it independent of the rpm of the tractor's p.t.o. shaft.
An rpm sensor at the pump measures the flow rate, which enables you to continuously control the desired discharge and nutrient quantity without delay
-
Easy control of discharge quantities
The discharge quantity can be controlled by means of a bypass independently of the pump rpm. For this purpose, a part of the slurry flowing through is returned to the tank. The setting is carried out by means of a hand lever or a slide with spindle motor.
In combination with an active flow rate sensor, a bypass also enables automatic quantity control.
-
Exactly determine quantities

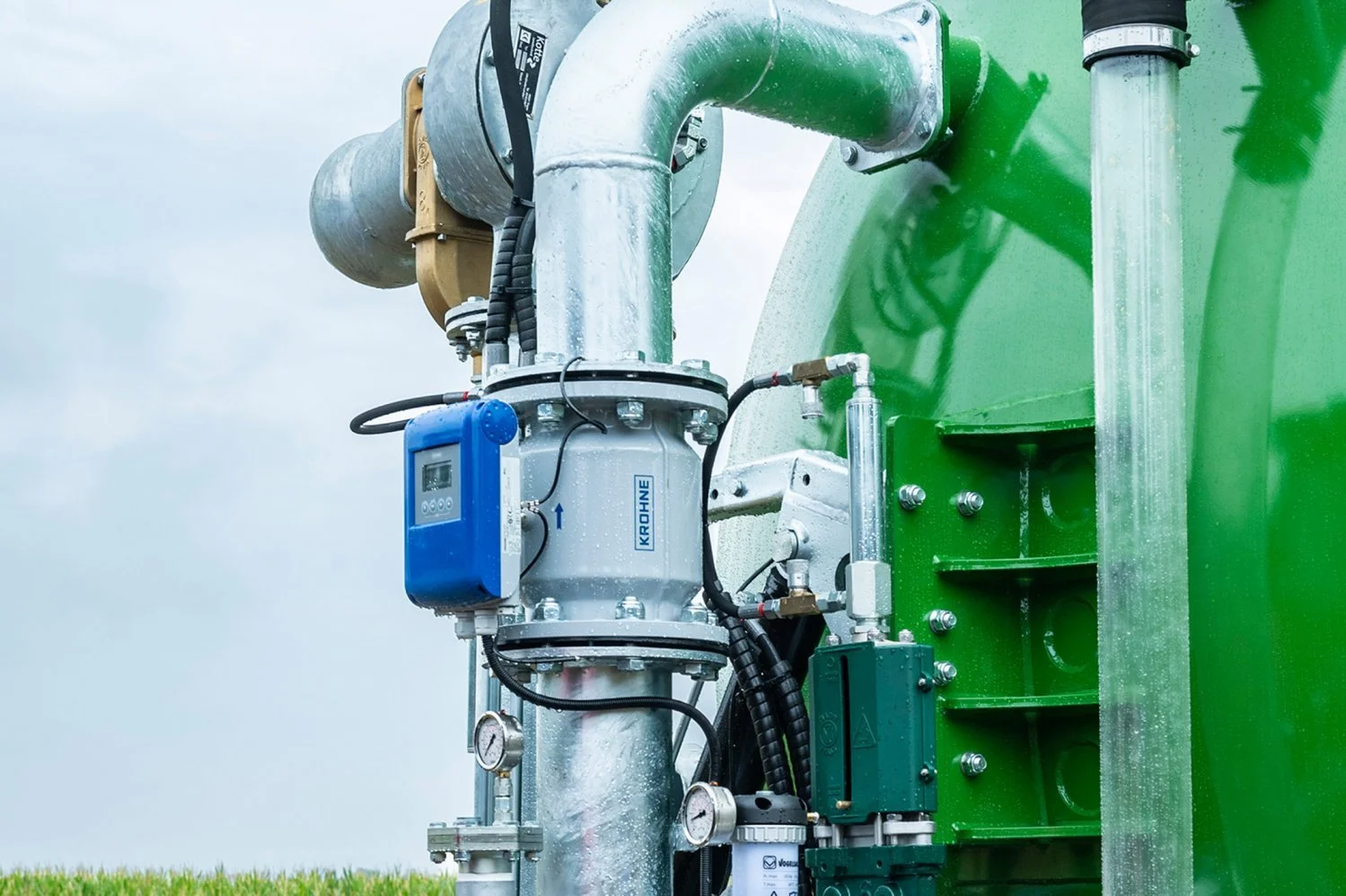

An inductive flow rate sensor continuously determines the quantity of discharged slurry within a measuring range between 0.5 and 12 cubic metres per minute.
The current quantity (m³/ha) is calculated on the basis of the recorded travelling speed in combination with the saved operating width of the application technology. You can read off the current value from a digital display at any time. The discharge quantity can also be actively controlled on request.
-
Optimum filling from above
Whether for regular filling or only for service work – Garant-Kotte offers the suitable filling dome option for all needs.
Apart from a mechanical filling dome with a hinged lid, a hydraulic alternative for your pump tank truck is also available
-
Powerful lifting and loweringThe durable and robust Garant-Kotte three-point/four-point lifting gears are the basis for your work success.
-
Tongue load in all situationsOur two-chamber system helps you to optimise the tongue load of the tractor, particularly on slopes. The principle is simple and smart: The interior of the slurry tanker is divided into two chambers. Due to closing the first chamber, there is more slurry in the front chamber than in the rear one during discharge. This means that the tractor still has sufficient tongue load, particularly when travelling uphill.
-
Working three times more efficiently
Lower the tyre pressure on the field, increase the ground contact area and thus reduce the pressure exerted on the ground. On the other hand, use a higher tyre pressure on the road to reduce the rolling resistance, thus achieving a considerable decrease of the diesel consumption. Moreover, tyre wear is also reduced.
The features at a glance:
German quality manufacturer PTG
One- and two-wire systems
Integrated and separate control terminal solutions
From 1.5 to 3.5 bar in up to two and a half minutes
-
More comfortable by far
Garant-Kotte suction spout solutions help you to easily, quickly and safely fill your professional slurry tanker. Thus, you stay clean and work comfortably and efficiently at the same time.
Simply suction arm
A pivot joint
Docking height approx. 1.30 metres
NW 200 or NW 250
Suction arm Multi 3 in 1
Modular / Flangeable design
Single-steered version with or without filling aid
Double-steered version with short or long transfer range
Double-steered version with suction hose for pit extraction
NW 200

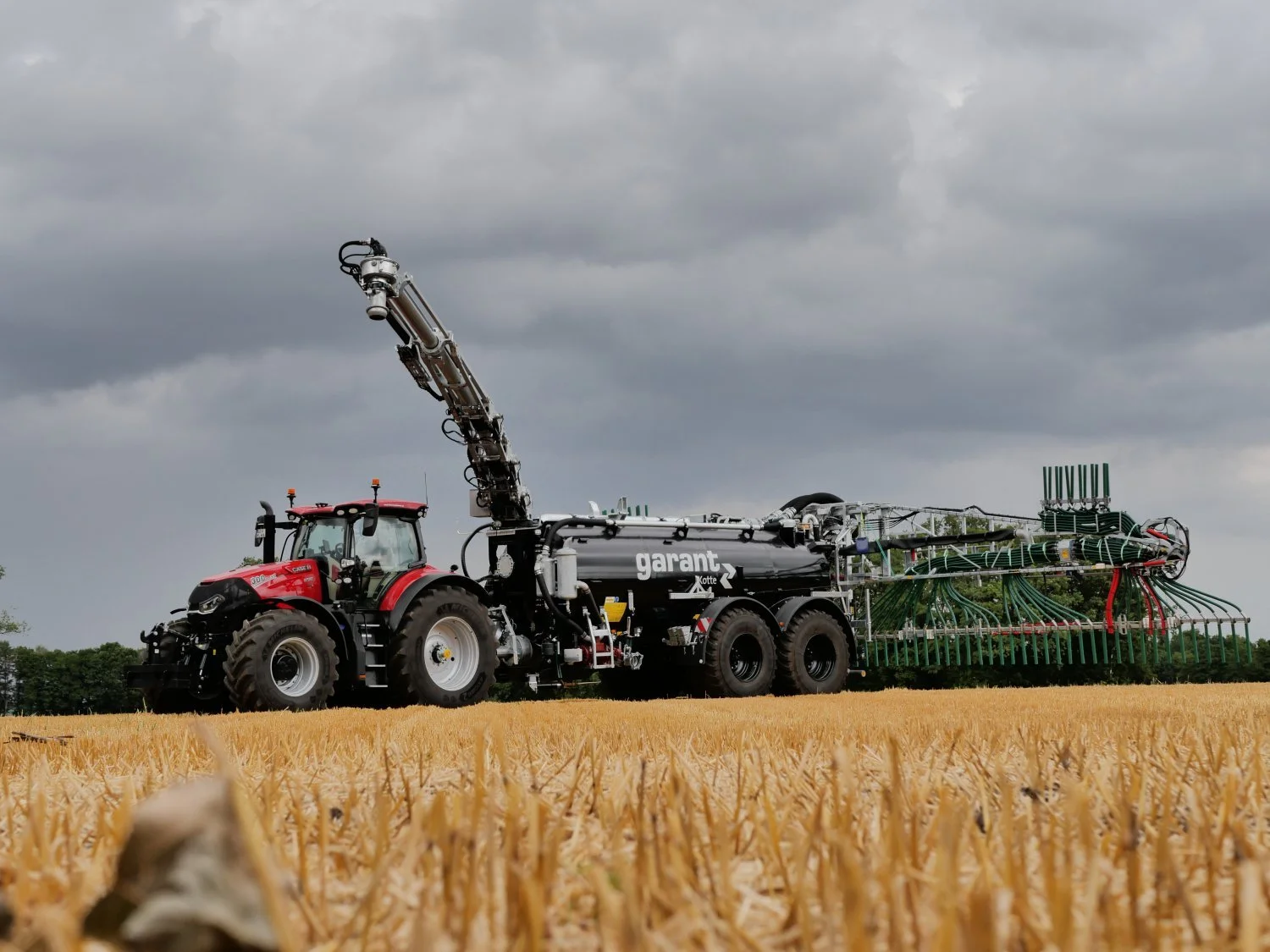

Suction arm on top of the tank
Can be swivelled up to 270°
Telescoping
Automatic parking position
NW 200

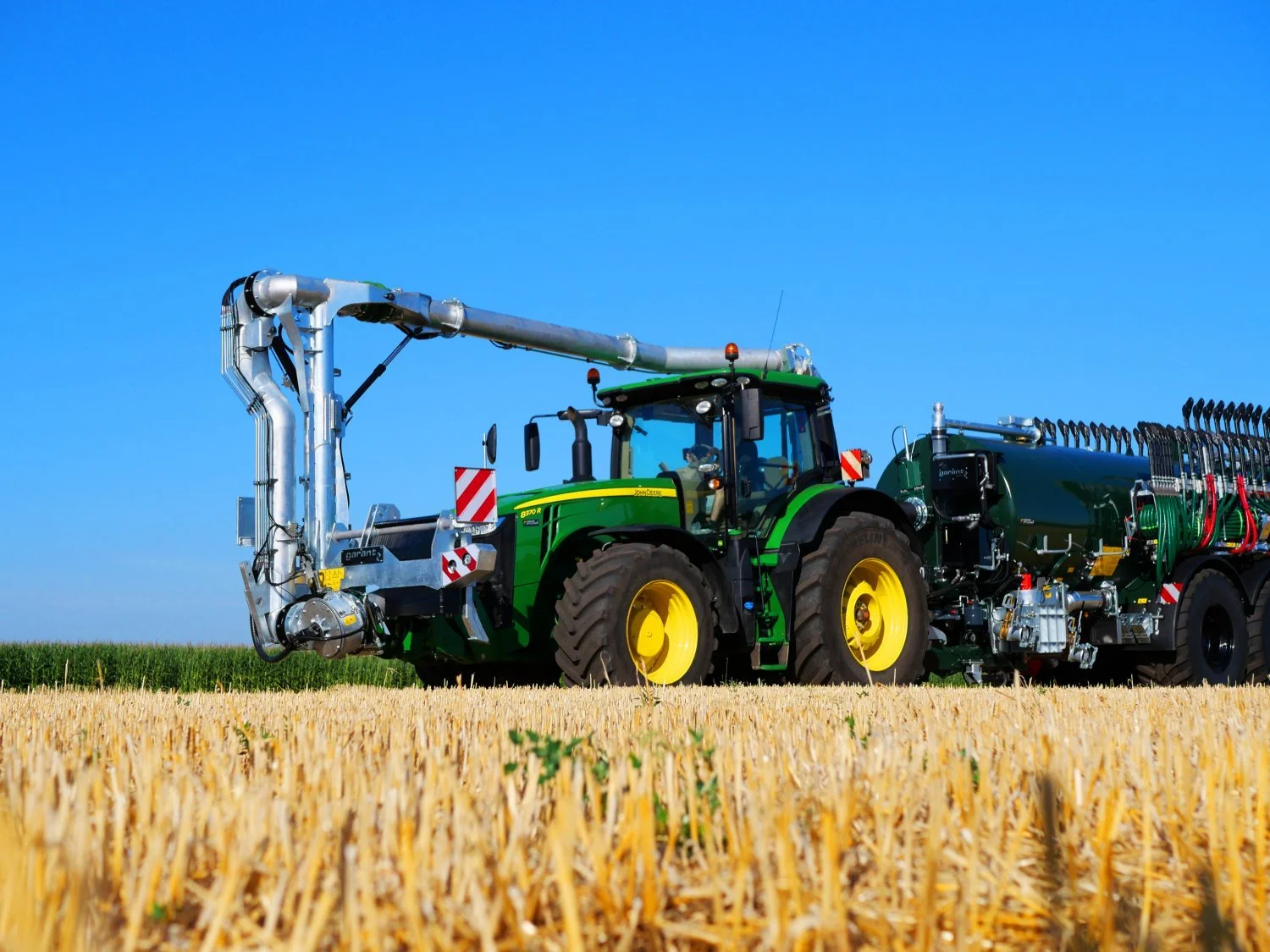

Front suction arm
Maximum comfort and efficiency
Filling at the edge of the field in an efficient and comfortable manner without any losses – this is best done by our front suction spouts. Thanks to their high suction power, they work particularly effectively and save time-consuming manoeuvring hours.
The feed line to the barrel runs exclusively above the tractor cabin, which ensures more safety and clear view during docking.
Additional ballast weights at the front suction spout ensure optimum ballast of the tractor. In addition, our front suction spouts are equipped with supporting legs, LED lighting und side mirrors for even more comfort
8" front suction arm
Dead weight 500 kg
Up to 500 kg of additional ballast weights
Standard professional filling aid
10" front suction arm
Dead weight 1000 kg
Up to 1000 kg of additional ballast weights
Standard professional filling aid
-

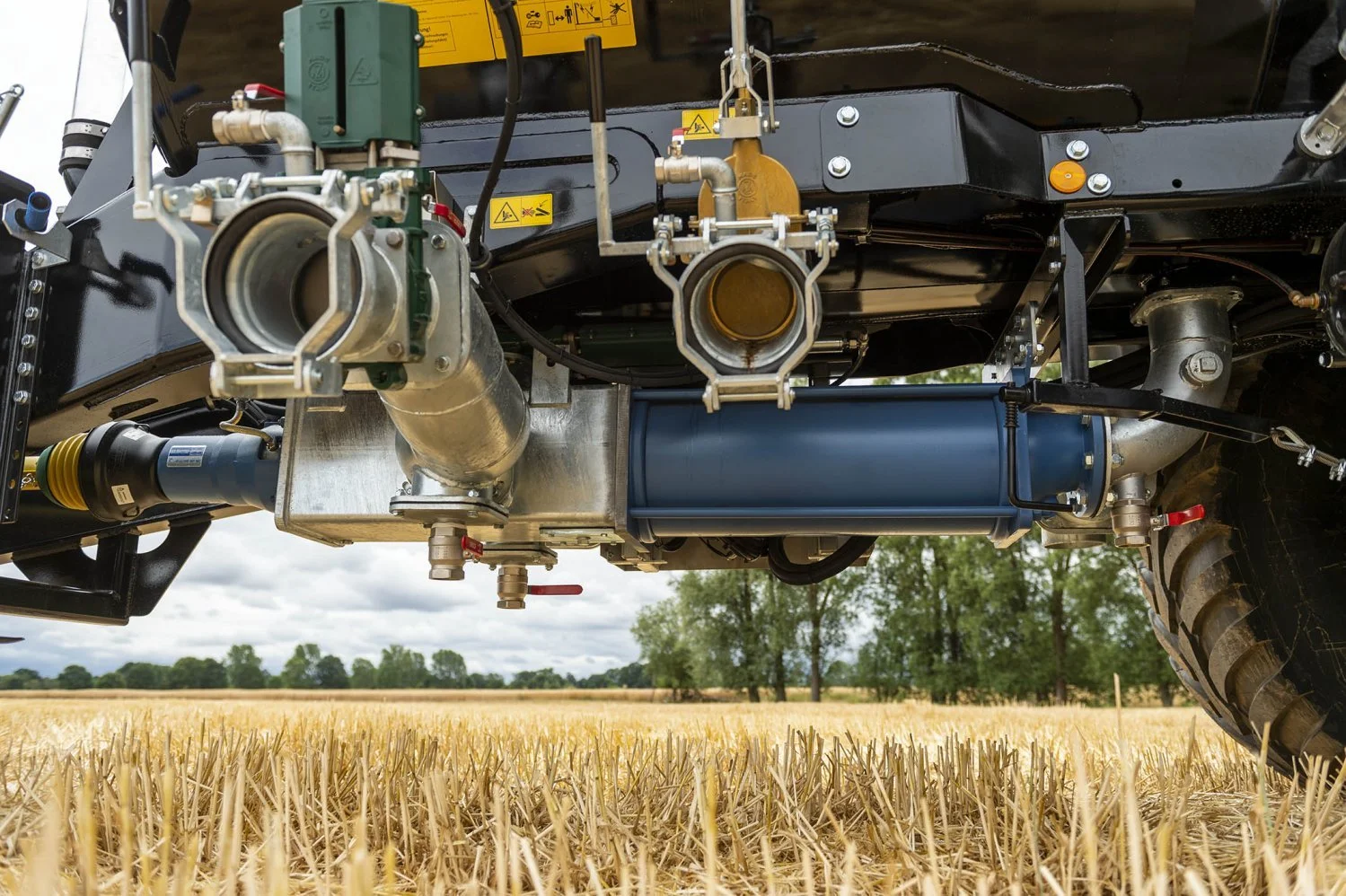

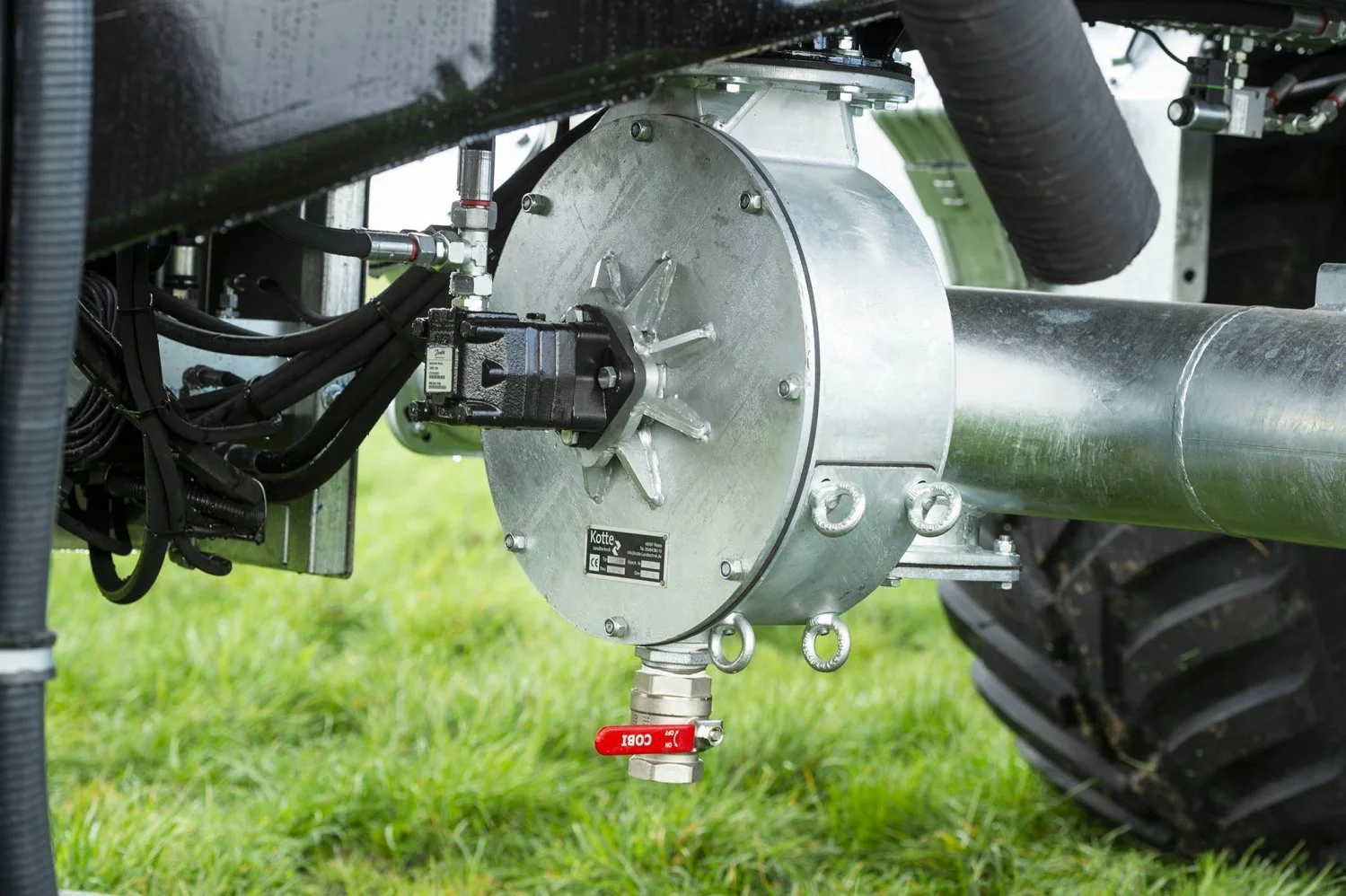

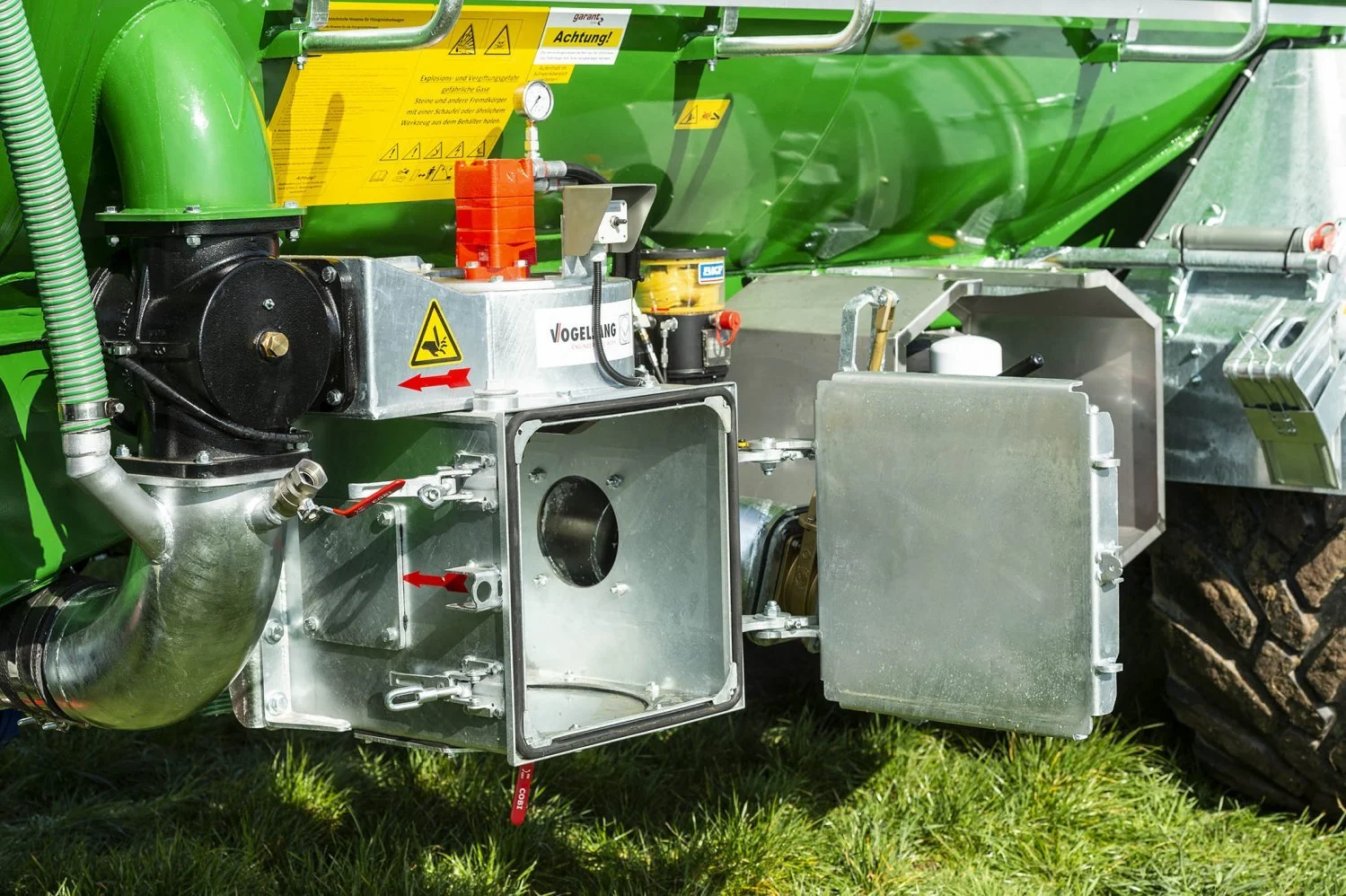

A cutting unit with stone catch box prevents the pump, the conduits and the application technology from being damaged by foreign objects. Furthermore, the slurry becomes considerably more flowable, such that clogging in the distributor head of the application technology is largely prevented.
You can manually set the optimum cutting power of the cutting unit or have it controlled automatically.
-
More working comfort and easy maintenance
On lobe pumps with a capacity of up to 10,000 litres, working comfort and ease of maintenance of the pump are significantly increased with our TopFlow system.
Due to the revised pipe routing, the lobe pump can be easily accessed from the side. Service work can be carried out more conveniently and with considerably less effort.
Furthermore, the optimised slurry flow increases the service life of the lobe pump and improves performance.
-
Maximum benefit from performance
On lobe pumps with a capacity from 10,000 litres, one cutting unit device with stone catch box limits the performance potential of the pump.
Therefore, we equip our garant TwinFlow system with two cutting unit devices with two suction and pressure pipes each. Due to this doubling, you can benefit from the full performance potential of the lobe pump of up to 14,000 litres per minute.
Another advantage is the position of the pump, which makes service work easy.
Tankers with eccentric screw pumps
Maximum suction power
Garant-Kotte tankers with eccentric screw pumps offer you a high degree of efficiency with a good price-performance ratio and very low life cycle costs.
The features at a glance:
1-3 axle slurry tankers
Tank sizes of 6 m³ to 32 m³
Steel tanks from German quality production
How it works
The eccentric screw pump generates its suction effect by means of a rotor, which rotates in the inside of a stator, thus creating a vacuum. The slurry flows into the tank through a pressure pipe beneath the tank.
Gate valves make it is easy to comfortably switch between the three functions of "filling", "discharging" and "agitating".
Basic Equipment
-
Rigid hitch
K80 ball
high driving comfort and ease of towing
higher drawbar loads can be achieved
Bottom hitch with drawbar suspension
K80 ball
Highest driving comfort
Adjustable to different coupling heights
Slope of the slurry tanker adjustable
-
Individuality is important to Garant-Kotte right from the start. For this reason, they customise all tanks to the respective chassis and the desired tyre size.
Tanks are manufactured in a special low-profile design and thus offer you optimum driving comfort – both on the road and in the field.
Every Garant-Kotte tank offers reliable corrosion protection. You can choose between galvanising or a special internal coating in combination with a coloured exterior paint. -
Tyres are not just tyres
Tyre type, tread and size must be perfectly adapted to the usage. Garant-Kotte has the right tyre for all operating conditions and any type of soil available. Garant-Kotte exclusively rely on renowned manufacturers such as Vredestein or Trelleborg.
The features at a glance:
Radial and cross-ply tyres
Diameter from 22.5 to 42 inch
Widths between 385 and 1050 mm
-
Robust and powerful
The robust design of the Wangen eccentric screw pumps is particularly resistant against foreign objects and provides a high degree of operational safety.
Wangen eccentric screw pumps have a rating of 4,000 or 6,000 litres per minute. Furthermore, they are available with or without stone catch box.
-
Proven and reliable
In order to ensure a high degree of reliability, Garant-Kotte exclusively use original BPW axle assemblies. All BPW chassis are individually adapted to your vehicle to guarantee optimum driving safety. In doing so, we take the gross vehicle weight rating, the tyres and the application into consideration.
Technical features of our chassis:
Square axle up to 150 mm x 150 mm
Brake drum up to 410 x 180 mm
TÜV certification up to 60 km/h
Prepared for tyre pressure control systems
-
Intelligent steering and fuel-saving
Steering axles improve manoeuvrability and track accuracy, which considerably reduces tyre wear and the load exerted on the entire chassis. Furthermore, you save fuel by means of a steering axle due to the fact that the slurry tanker is significantly easier to pull. Less friction additionally protects the ground and the sward.
Hydraulic forced steering
Straightforward and robust system
Large steering angle possible
Electro-hydraulic forced steering
ElectronicSteeringSystem (ESS 2.0)
Simple connection, as no steering linkage is required
Manual steering possible via control unit
Electro-hydraulic steering system
MultiSteeringSystem (MSS)
All axles are steerable
Adjustable steering strategies, e.g. also travelling in crab-steering mode
Supplementary Equipment
-
Exactly determine quantities
An inductive flow rate sensor continuously determines the quantity of discharged slurry within a measuring range between 0.5 and 12 cubic metres per minute.
The current quantity (m³/ha) is calculated on the basis of the recorded travelling speed in combination with the saved operating width of the application technology. You can read off the current value from a digital display at any time. The discharge quantity can also be actively controlled on request.
-
Optimum filling from above
Whether for regular filling or only for service work – Garant-Kotte offers the suitable filling dome option for all needs.
Apart from a mechanical filling dome with a hinged lid, a hydraulic alternative for your pump tank truck is also available
-
Powerful lifting and loweringThe durable and robust Garant-Kotte three-point/four-point lifting gears are the basis for your work success.
-
Tongue load in all situationsOur two-chamber system helps you to optimise the tongue load of the tractor, particularly on slopes. The principle is simple and smart: The interior of the slurry tanker is divided into two chambers. Due to closing the first chamber, there is more slurry in the front chamber than in the rear one during discharge. This means that the tractor still has sufficient tongue load, particularly when travelling uphill.
-
More comfortable by far
Garant-Kotte suction spout solutions help you to easily, quickly and safely fill your professional slurry tanker. Thus, you stay clean and work comfortably and efficiently at the same time.
Simply suction arm
A pivot joint
Docking height approx. 1.30 metres
NW 200 or NW 250
Suction arm Multi 3 in 1
Modular / Flangeable design
Single-steered version with or without filling aid
Double-steered version with short or long transfer range
Double-steered version with suction hose for pit extraction
NW 200
Suction arm on top of the tank
Can be swivelled up to 270°
Telescoping
Automatic parking position
NW 200
Front suction arm
Maximum comfort and efficiency
Filling at the edge of the field in an efficient and comfortable manner without any losses – this is best done by our front suction spouts. Thanks to their high suction power, they work particularly effectively and save time-consuming manoeuvring hours.
The feed line to the barrel runs exclusively above the tractor cabin, which ensures more safety and clear view during docking.
Additional ballast weights at the front suction spout ensure optimum ballast of the tractor. In addition, our front suction spouts are equipped with supporting legs, LED lighting und side mirrors for even more comfort
8" front suction arm
Dead weight 500 kg
Up to 500 kg of additional ballast weights
Standard professional filling aid
10" front suction arm
Dead weight 1000 kg
Up to 1000 kg of additional ballast weights
Standard professional filling aid
-
A cutting unit with stone catch box prevents the pump, the conduits and the application technology from being damaged by foreign objects. Furthermore, the slurry becomes considerably more flowable, such that clogging in the distributor head of the application technology is largely prevented.
You can manually set the optimum cutting power of the cutting unit or have it controlled automatically.
Tankers with centrifugal pump
Full power
Power Boost technology, a hybrid technology consisting of vacuum and centrifugal pump, considerably increases efficiency. The unbeatable advantage: You can quickly and completely fill your slurry tanker, thus preventing long parking times. At the same time, an agitating function prevents solid materials from sinking and clogging.
The features at a glance:
1-3 axle slurry tankers
Tank sizes of 6 m³ to 32 m³
Steel tanks from German quality production
How it works
The Power Boost technology from garant Kotte is a combination of a vacuum pump and a centrifugal pump system. The tank is filled and emptied by means of a centrifugal pump powered by a p.t.o. shaft. The vacuum compressor is driven hydraulically. In contrast to the usual vacuum tank truck, the compressor on this model only serves to suck up the slurry up to the centrifugal pump.
Basic Equipment
-
Rigid hitch
K80 ball
high driving comfort and ease of towing
higher drawbar loads can be achieved
Bottom hitch with drawbar suspension
K80 ball
Highest driving comfort
Adjustable to different coupling heights
Slope of the slurry tanker adjustable
-
Individuality is important to Garant-Kotte right from the start. For this reason, they customise all tanks to the respective chassis and the desired tyre size.
Tanks are manufactured in a special low-profile design and thus offer you optimum driving comfort – both on the road and in the field.
Every Garant-Kotte tank offers reliable corrosion protection. You can choose between galvanising or a special internal coating in combination with a coloured exterior paint. -
Tyres are not just tyres
Tyre type, tread and size must be perfectly adapted to the usage. Garant-Kotte has the right tyre for all operating conditions and any type of soil available. Garant-Kotte exclusively rely on renowned manufacturers such as Vredestein or Trelleborg.
The features at a glance:
Radial and cross-ply tyres
Diameter from 22.5 to 42 inch
Widths between 385 and 1050 mm
-
A good combination
Directly driven centrifugal pumps are powerful and particularly durable. Compressors do not come into contact with the slurry during filling and emptying, therefore there is only little wear. Furthermore, service work can be carried out easily and cost-effectively.
Centrifugal pump
NW 250
Installed at the front under the tank
Direct drive via PTO shaft

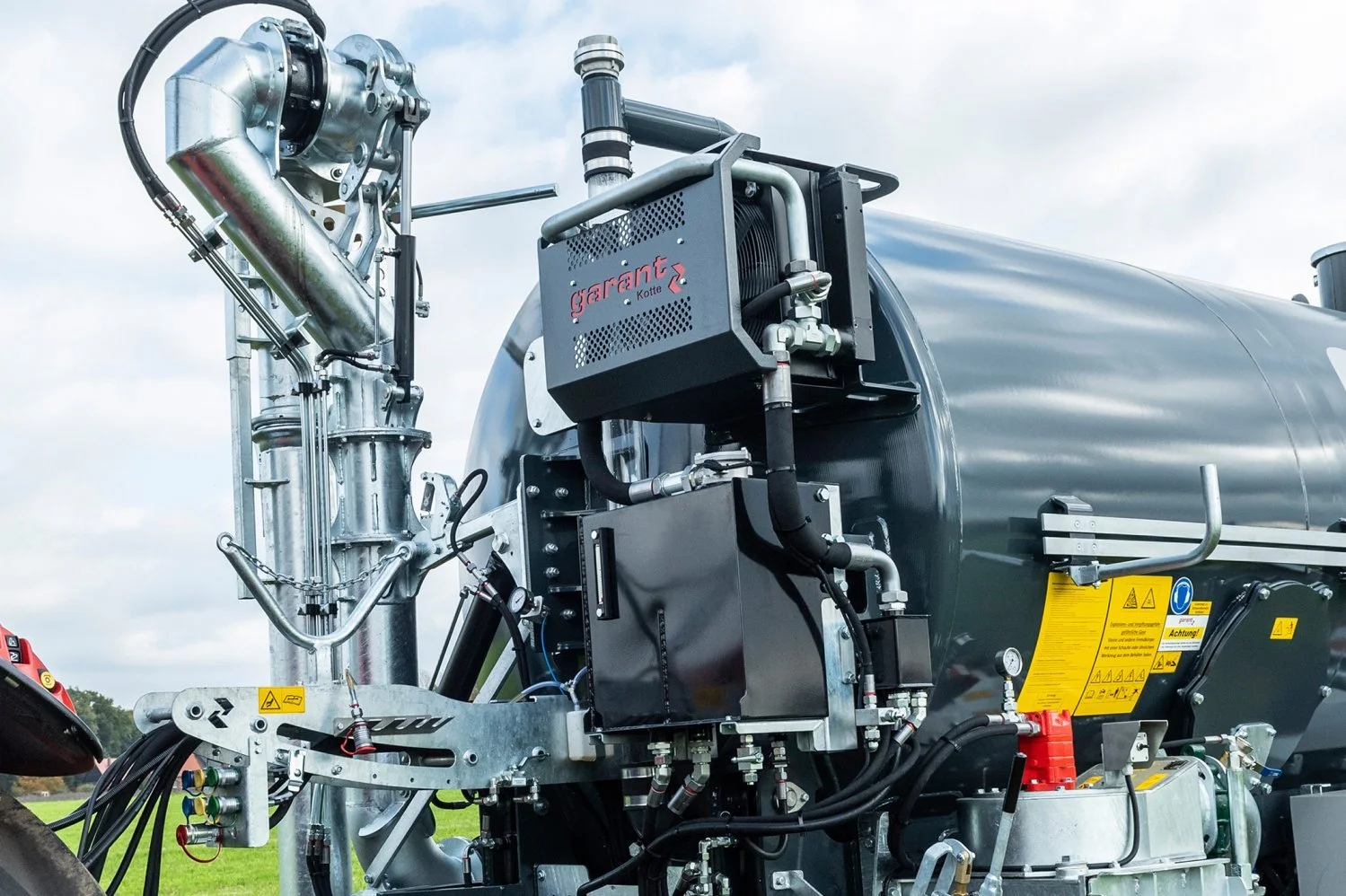

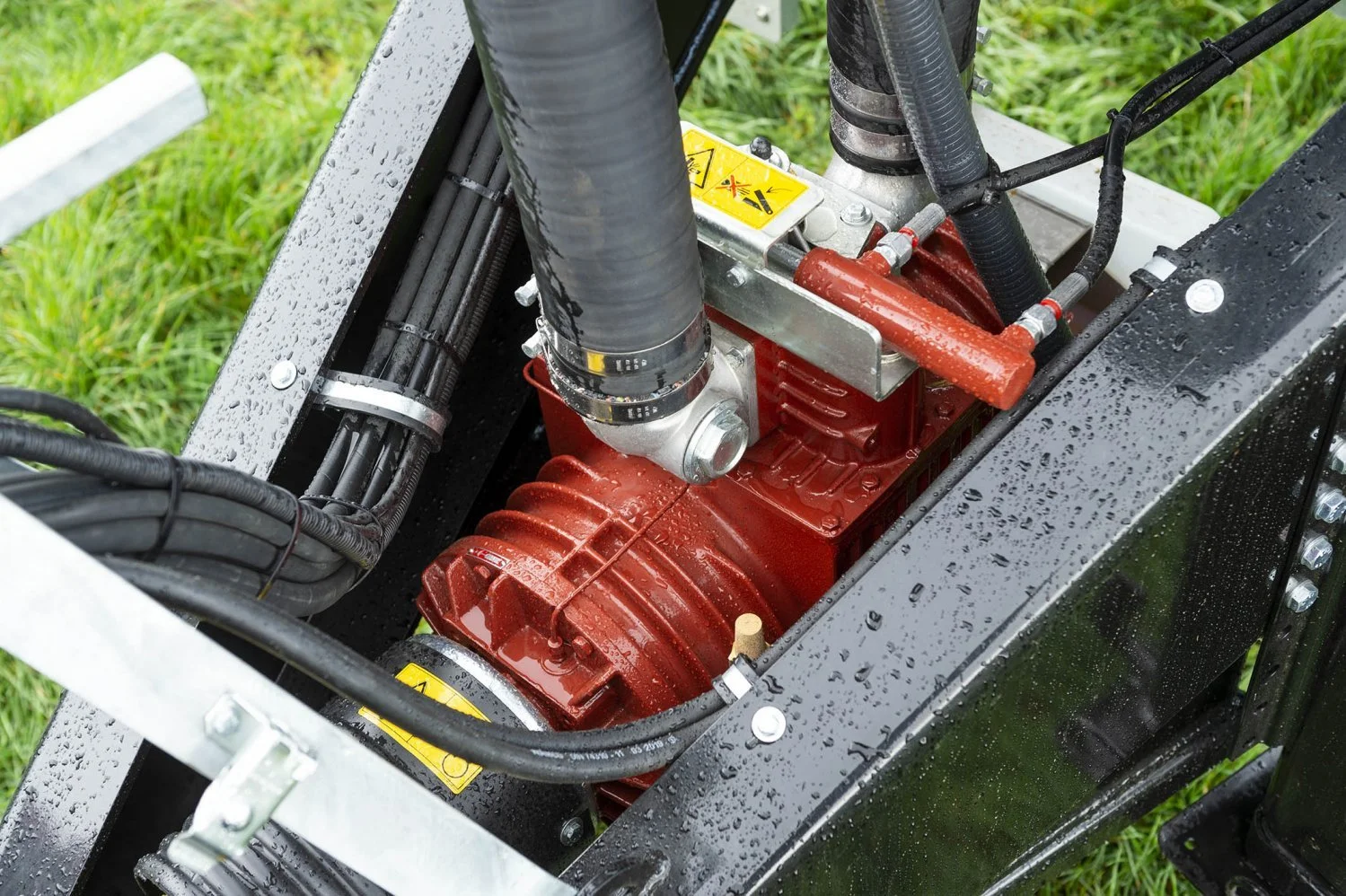

Jurop PN compressor
Hydraulically driven (via tractor hydraulics)
Air output 15,500 litres per minute
Automatic lubrication
with injector cooling
-
Proven and reliable
In order to ensure a high degree of reliability, Garant-Kotte exclusively use original BPW axle assemblies. All BPW chassis are individually adapted to your vehicle to guarantee optimum driving safety. In doing so, we take the gross vehicle weight rating, the tyres and the application into consideration.
Technical features of our chassis:
Square axle up to 150 mm x 150 mm
Brake drum up to 410 x 180 mm
TÜV certification up to 60 km/h
Prepared for tyre pressure control systems
-
Intelligent steering and fuel-saving
Steering axles improve manoeuvrability and track accuracy, which considerably reduces tyre wear and the load exerted on the entire chassis. Furthermore, you save fuel by means of a steering axle due to the fact that the slurry tanker is significantly easier to pull. Less friction additionally protects the ground and the sward.
Hydraulic forced steering
Straightforward and robust system
Large steering angle possible
Electro-hydraulic forced steering
ElectronicSteeringSystem (ESS 2.0)
Simple connection, as no steering linkage is required
Manual steering possible via control unit
Electro-hydraulic steering system
MultiSteeringSystem (MSS)
All axles are steerable
Adjustable steering strategies, e.g. also travelling in crab-steering mode
Supplementary Equipment
-
Easy control of discharge quantities
The discharge quantity can be controlled by means of a bypass independently of the pump rpm. For this purpose, a part of the slurry flowing through is returned to the tank. The setting is carried out by means of a hand lever or a slide with spindle motor.
In combination with an active flow rate sensor, a bypass also enables automatic quantity control.
-
Exactly determine quantities
An inductive flow rate sensor continuously determines the quantity of discharged slurry within a measuring range between 0.5 and 12 cubic metres per minute.
The current quantity (m³/ha) is calculated on the basis of the recorded travelling speed in combination with the saved operating width of the application technology. You can read off the current value from a digital display at any time. The discharge quantity can also be actively controlled on request.
-
Powerful lifting and loweringThe durable and robust Garant-Kotte three-point/four-point lifting gears are the basis for your work success.
-
Tongue load in all situationsOur two-chamber system helps you to optimise the tongue load of the tractor, particularly on slopes. The principle is simple and smart: The interior of the slurry tanker is divided into two chambers. Due to closing the first chamber, there is more slurry in the front chamber than in the rear one during discharge. This means that the tractor still has sufficient tongue load, particularly when travelling uphill.
-
Working three times more efficiently
Lower the tyre pressure on the field, increase the ground contact area and thus reduce the pressure exerted on the ground. On the other hand, use a higher tyre pressure on the road to reduce the rolling resistance, thus achieving a considerable decrease of the diesel consumption. Moreover, tyre wear is also reduced.
The features at a glance:
German quality manufacturer PTG
One- and two-wire systems
Integrated and separate control terminal solutions
From 1.5 to 3.5 bar in up to two and a half minutes
-
More comfortable by far
Garant-Kotte suction spout solutions help you to easily, quickly and safely fill your professional slurry tanker. Thus, you stay clean and work comfortably and efficiently at the same time.
Simply suction arm
A pivot joint
Docking height approx. 1.30 metres
NW 200 or NW 250
Suction arm Multi 3 in 1
Modular / Flangeable design
Single-steered version with or without filling aid
Double-steered version with short or long transfer range
Double-steered version with suction hose for pit extraction
NW 200
Suction arm on top of the tank
Can be swivelled up to 270°
Telescoping
Automatic parking position
NW 200
Front suction arm
Maximum comfort and efficiency
Filling at the edge of the field in an efficient and comfortable manner without any losses – this is best done by our front suction spouts. Thanks to their high suction power, they work particularly effectively and save time-consuming manoeuvring hours.
The feed line to the barrel runs exclusively above the tractor cabin, which ensures more safety and clear view during docking.
Additional ballast weights at the front suction spout ensure optimum ballast of the tractor. In addition, our front suction spouts are equipped with supporting legs, LED lighting und side mirrors for even more comfort
8" front suction arm
Dead weight 500 kg
Up to 500 kg of additional ballast weights
Standard professional filling aid
10" front suction arm
Dead weight 1000 kg
Up to 1000 kg of additional ballast weights
Standard professional filling aid
-
A cutting unit with stone catch box prevents the pump, the conduits and the application technology from being damaged by foreign objects. Furthermore, the slurry becomes considerably more flowable, such that clogging in the distributor head of the application technology is largely prevented.
You can manually set the optimum cutting power of the cutting unit or have it controlled automatically.

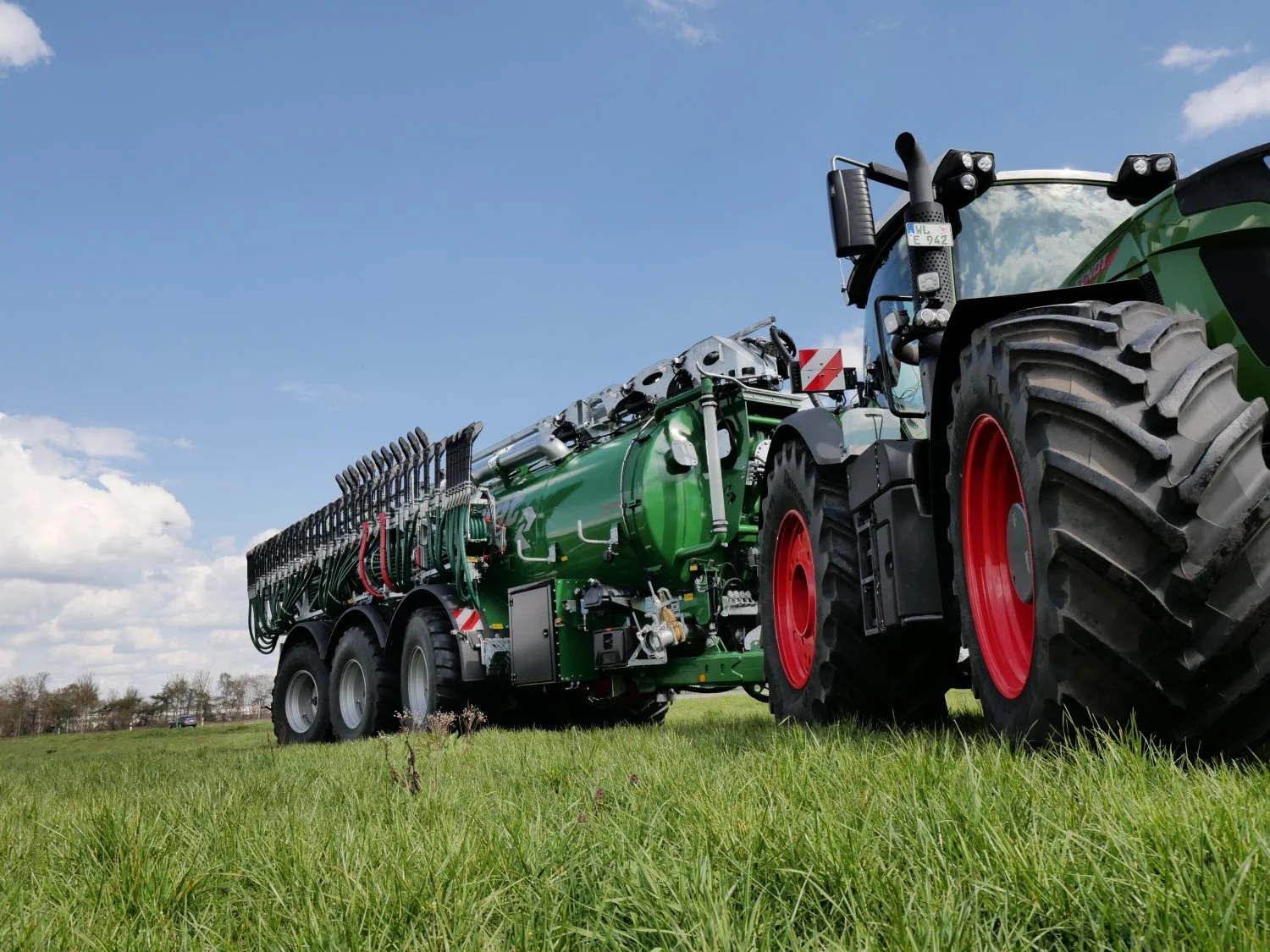

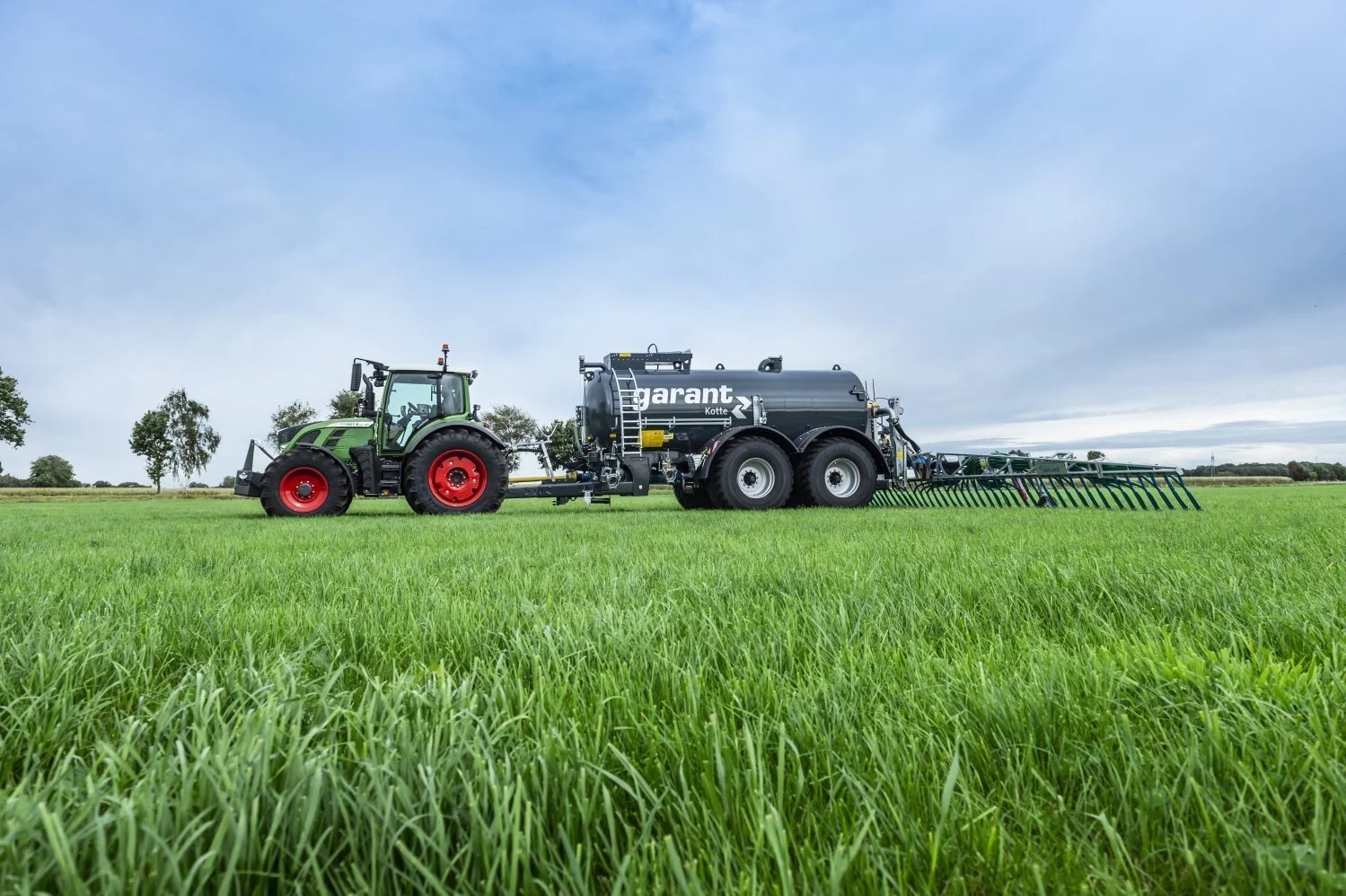

Vacuum tankers
Solid solution
Vacuum tankers are not only easy to operate, but also convince by a long service life and an excellent price-performance ratio.
The features at a glance:
1-3 axle slurry tankers
Tank sizes of 6 m³ to 32 m³
Steel tanks from German quality production
How it works
The vacuum tank trailer works with vacuum and overpressure. If a tank is to be filled, a vacuum compressor generates a vacuum. Thus, the slurry flows into the barrel. During discharge, the compressor generates an overpressure, which actively conveys the slurry to the application technology.
Basic Equipment
-
Rigid hitch
K80 ball
high driving comfort and ease of towing
higher drawbar loads can be achieved
Bottom hitch with drawbar suspension
K80 ball
Highest driving comfort
Adjustable to different coupling heights
Slope of the slurry tanker adjustable
-
Individuality is important to Garant-Kotte right from the start. For this reason, they customise all tanks to the respective chassis and the desired tyre size.
Tanks are manufactured in a special low-profile design and thus offer you optimum driving comfort – both on the road and in the field.
Every Garant-Kotte tank offers reliable corrosion protection. You can choose between galvanising or a special internal coating in combination with a coloured exterior paint. -
Tyres are not just tyres
Tyre type, tread and size must be perfectly adapted to the usage. Garant-Kotte has the right tyre for all operating conditions and any type of soil available. Garant-Kotte exclusively rely on renowned manufacturers such as Vredestein or Trelleborg.
The features at a glance:
Radial and cross-ply tyres
Diameter from 22.5 to 42 inch
Widths between 385 and 1050 mm
-
Always firmly connected
Whether top or bottom hitching, with or without drawbar suspension – we have the right hitch for every tractor and every system. To make your work even more efficient, we adapt the hitch of your slurry tanker individually to the existing tractor and to the permissible drawbar load.
Rigid top hitch
for flange towing eye or K80 ball
suitable for slurry tankers without or with light spreading technology
Rigid bottom hitch
for K80 ball
high driving comfort and ease of towing
higher drawbar loads can be achieved
Bottom hitch with drawbar suspension
for K80 ball
Highest driving comfort
Adjustable to different coupling heights
Slope of the slurry tanker adjustable
Individuality right from the start
Individuality is important to us right from the start. For this reason, we customise all containers to the respective chassis and the desired tyre size.
Our containers are manufactured in a special low-profile design and thus offer you optimum driving comfort – both on the road and in the field.
Every garant container offers reliable corrosion protection. You can choose between galvanising or a special internal coating in combination with a coloured exterior paint.Tyres are not just tyres
Tyre type, tread and size must be perfectly adapted to the usage. We have the right tyre for all operating conditions and any type of soil available. We exclusively rely on renowned manufacturers such as Vredestein or Trelleborg.
The features at a glance:
Radial and cross-ply tyres
Diameter from 22.5 to 42 inch
Widths between 385 and 1050 mm
Proven and reliable
In order to ensure a high degree of reliability, we exclusively use original BPW axle assemblies. All BPW chassis are individually adapted to your vehicle to guarantee optimum driving safety. In doing so, we take the gross vehicle weight rating, the tyres and the application into consideration.
Technical features of our chassis:
Square axle up to 150 mm x 150 mm
Brake drum up to 410 x 180 mm
TÜV certification up to 60 km/h
Prepared for tyre pressure control systems
The chassis at a glance
Einachs-Aggregat
Extrem belastbar. Geeignet für Einachs-Güllewagen
Verbundaggregat mit Parabelfederung
Sehr gute Hangstabilität. Geeignet für Tandem- und Tridem-Güllewagen
Boogie-Achs-Aggregat mit Parabelfederung
Gute Federeigenschaften. Geeignet für Tandem-Güllewagen
Pneumatisch gefederted Aggregat
Hohe Fahrstabilität & Komfort. Geeignet für Tandem-, Tridem- und Vierachs-Güllewagen
Hydraulisch gefedertes Aggregat
Sicherheit in Hanglagen. Geeignet für Tandem-, Tridem- und Vierachs-Güllewagen
Verschiebbare Achse
Flexibilität bei verschiedenen Applikationstechniken. Geeignet für Tandem-Güllewagen
Triebachse
Hydraulisch angetrieben. Geeignet für Einachs-, Tandem- und Tridem-Güllewagen
Proven and reliable
Compressors do not come into contact with the slurry during filling and emptying, therefore there is only little wear.
Furthermore, service work can be carried out easily and cost-effectively. We exclusively equip our vehicles with quality compressors from Jurop.PN compressors
Vacuum rotary compressor with segments
Air performance from 9,000 to 15,200 litres per minute
Insensitive to liquid foreign substances
Easy maintenance
DL compressors
Lobe compressor with counter-rotating pistons
Air performance from 10,000 to 17,600 litres per minute
Oil-free operation
Suitable for continuous operation
Low noise level
-
Proven and reliable
In order to ensure a high degree of reliability, Garant-Kotte exclusively use original BPW axle assemblies. All BPW chassis are individually adapted to your vehicle to guarantee optimum driving safety. In doing so, we take the gross vehicle weight rating, the tyres and the application into consideration.
Technical features of our chassis:
Square axle up to 150 mm x 150 mm
Brake drum up to 410 x 180 mm
TÜV certification up to 60 km/h
Prepared for tyre pressure control systems
-
Intelligent steering and fuel-saving
Steering axles improve manoeuvrability and track accuracy, which considerably reduces tyre wear and the load exerted on the entire chassis. Furthermore, you save fuel by means of a steering axle due to the fact that the slurry tanker is significantly easier to pull. Less friction additionally protects the ground and the sward.
Hydraulic forced steering
Straightforward and robust system
Large steering angle possible
Electro-hydraulic forced steering
ElectronicSteeringSystem (ESS 2.0)
Simple connection, as no steering linkage is required
Manual steering possible via control unit
Electro-hydraulic steering system
MultiSteeringSystem (MSS)
All axles are steerable
Adjustable steering strategies, e.g. also travelling in crab-steering mode
Supplementary Equipment
-
Significantly more efficient filling
Filling aids help you fill your vacuum slurry tanker much more efficiently. They not only save time, but also achieve a significantly higher degree of filling in addition to creating a vacuum effect.
Another advantage is the low foam produced in pig manure. When handling cattle manure you avoid the vacuum-induced increase in volume. This means that the filling aid also protects the vacuum compressoror.
-
Exactly determine quantities
An inductive flow rate sensor continuously determines the quantity of discharged slurry within a measuring range between 0.5 and 12 cubic metres per minute.
The current quantity (m³/ha) is calculated on the basis of the recorded travelling speed in combination with the saved operating width of the application technology. You can read off the current value from a digital display at any time. The discharge quantity can also be actively controlled on request.
-
Powerful lifting and loweringThe durable and robust Garant-Kotte three-point/four-point lifting gears are the basis for your work success.
-
Tongue load in all situationsOur two-chamber system helps you to optimise the tongue load of the tractor, particularly on slopes. The principle is simple and smart: The interior of the slurry tanker is divided into two chambers. Due to closing the first chamber, there is more slurry in the front chamber than in the rear one during discharge. This means that the tractor still has sufficient tongue load, particularly when travelling uphill.
-
Working three times more efficiently
Lower the tyre pressure on the field, increase the ground contact area and thus reduce the pressure exerted on the ground. On the other hand, use a higher tyre pressure on the road to reduce the rolling resistance, thus achieving a considerable decrease of the diesel consumption. Moreover, tyre wear is also reduced.
The features at a glance:
German quality manufacturer PTG
One- and two-wire systems
Integrated and separate control terminal solutions
From 1.5 to 3.5 bar in up to two and a half minutes
-
More comfortable by far
Garant-Kotte suction spout solutions help you to easily, quickly and safely fill your professional slurry tanker. Thus, you stay clean and work comfortably and efficiently at the same time.
Simply suction arm
A pivot joint
Docking height approx. 1.30 metres
NW 200 or NW 250
Suction arm Multi 3 in 1
Modular / Flangeable design
Single-steered version with or without filling aid
Double-steered version with short or long transfer range
Double-steered version with suction hose for pit extraction
NW 200
Suction arm on top of the tank
Can be swivelled up to 270°
Telescoping
Automatic parking position
NW 200
Front suction arm
Maximum comfort and efficiency
Filling at the edge of the field in an efficient and comfortable manner without any losses – this is best done by our front suction spouts. Thanks to their high suction power, they work particularly effectively and save time-consuming manoeuvring hours.
The feed line to the barrel runs exclusively above the tractor cabin, which ensures more safety and clear view during docking.
Additional ballast weights at the front suction spout ensure optimum ballast of the tractor. In addition, our front suction spouts are equipped with supporting legs, LED lighting und side mirrors for even more comfort
8" front suction arm
Dead weight 500 kg
Up to 500 kg of additional ballast weights
Standard professional filling aid
10" front suction arm
Dead weight 1000 kg
Up to 1000 kg of additional ballast weights
Standard professional filling aid
-
A cutting unit with stone catch box prevents the pump, the conduits and the application technology from being damaged by foreign objects. Furthermore, the slurry becomes considerably more flowable, such that clogging in the distributor head of the application technology is largely prevented.
You can manually set the optimum cutting power of the cutting unit or have it controlled automatically.
Operating and control technology
Garant-Kotte control terminals help you to keep track of everything – together with an unbeatable value for money. From the driver's cabin, you comfortably and safely control all hydraulic and electrical functions of your slurry tanker and application technology.

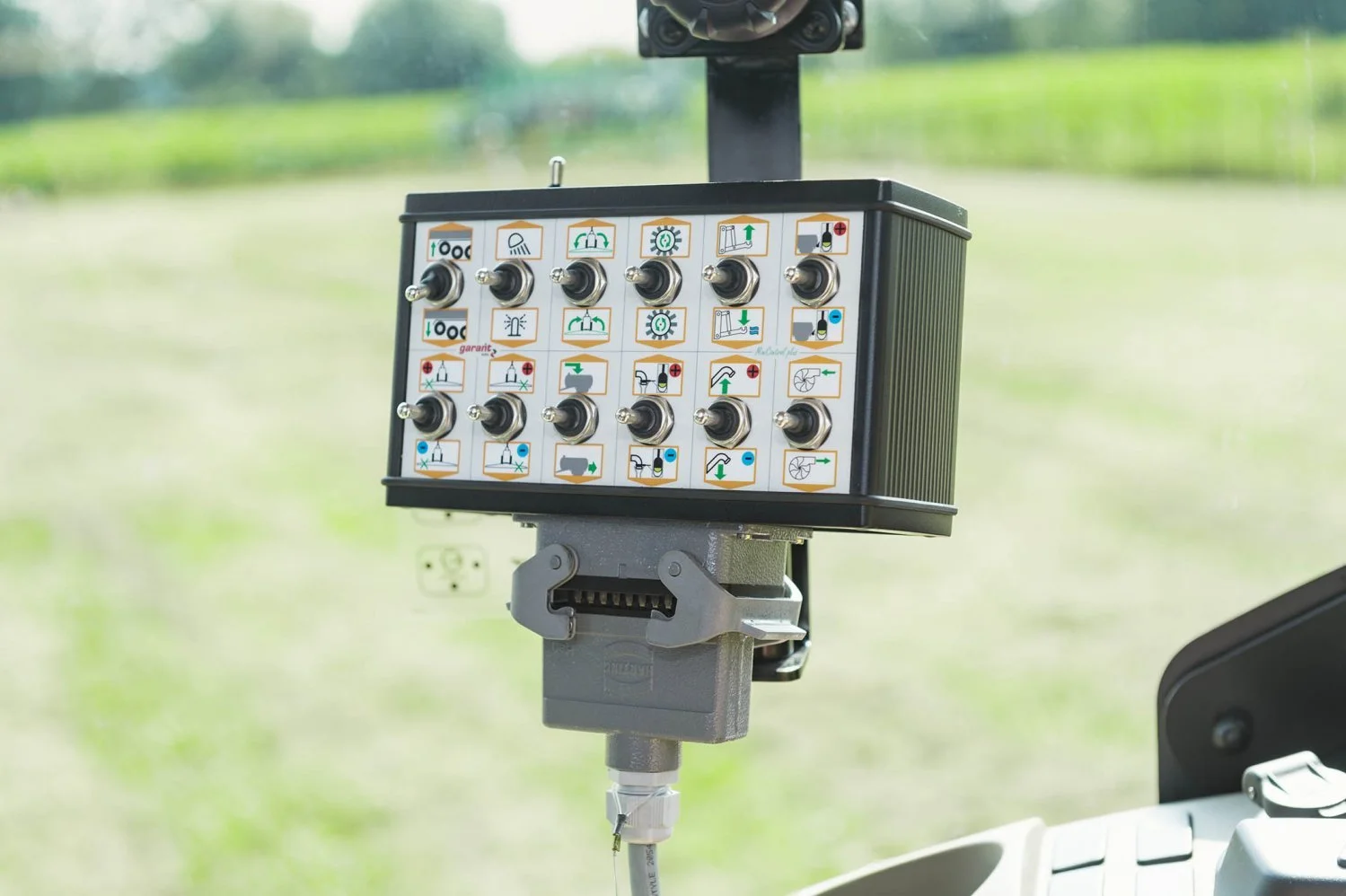

MiniControl
Easy operation thanks to MiniControl and MiniControl+
The control terminals MiniControl and MiniControl+ enable you to control up to twelve functions on your slurry tanker by means of toggle switches. Hydraulic supply takes place via load-sensing or a fixed displacement pump.
Various toggle switch types are installed for your safety. Thus, you have to actively keep the toggle switch pressed e.g. when folding out the application technology. In contrast, functions that are non-critical from the safety point of view can be controlled without actively keeping the switch pressed.
SmartControl
Keeping track of everything by means of SmartControl
Our SmartControl control systems are clearly designed and can be intuitively operated – the be-all and end-all for smooth and relaxed working.
They are based on the CAN BUS technology, which enables comfortable control of a large number of functions. In addition, the SmartControl control systems also score with many other features such as e.g. a joystick.
SmartControl Mini & Eco
Operating terminal: 4.3" colour display
A maximum of 24 or 36 function outputs
Optional joystick
Freely assignable hotkeys as standard
Optional ISOBUS compatibility (ECO)
SmartControl Comfort & Profi
Control terminal: 7" colour touch screen
A maximum of 56 or 80 function outputs
Two-axes joystick as standard
Freely assignable hotkeys as standard
Optional ISOBUS compatibility

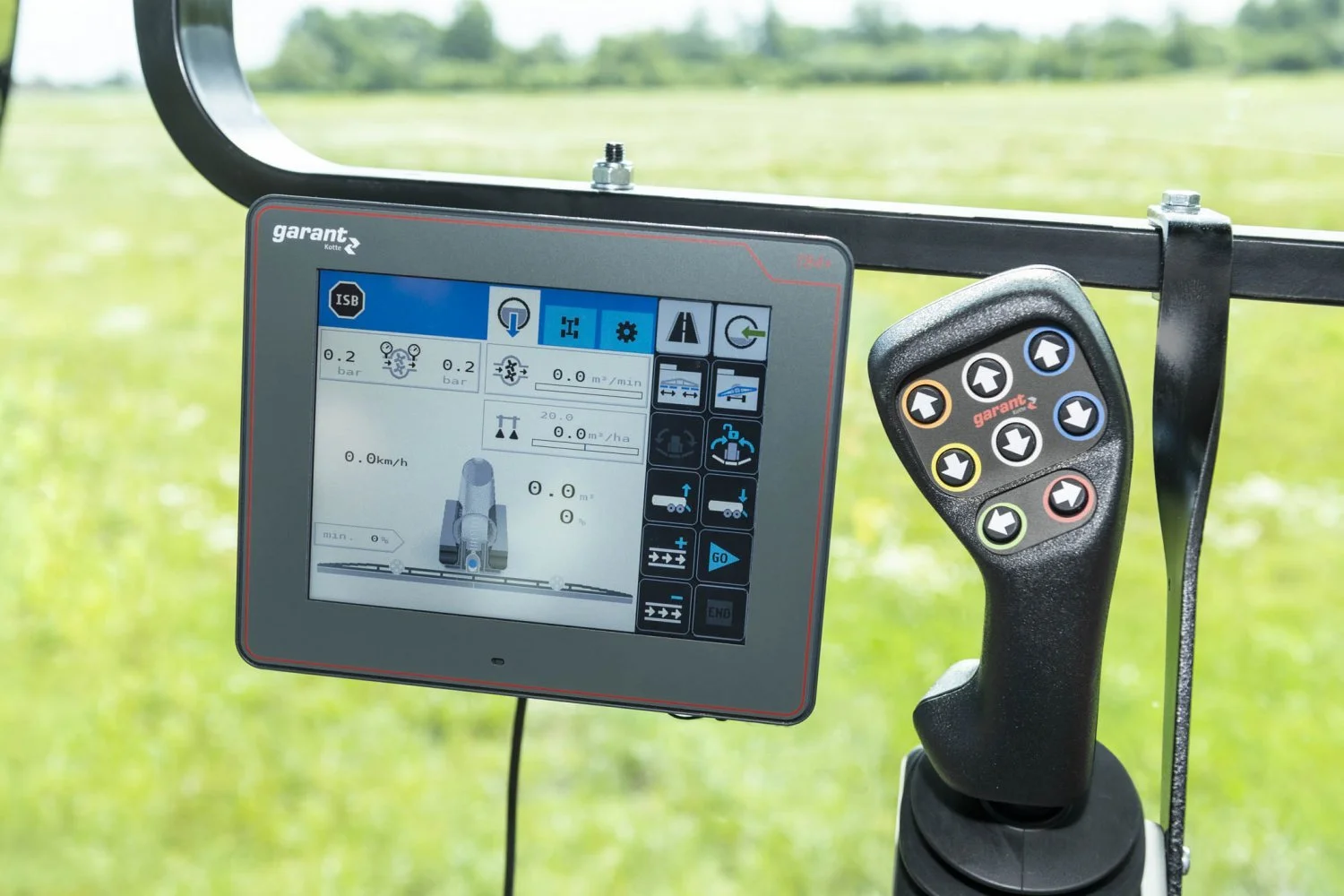

GoControl ISO T56
GoControl ISO T84+
Intuitive operation with Go Control ISO
No matter whether you further focus on Precision Farming or you wish to reduce the number of control terminals in the tractor cabin: Our GoControl ISOBUS control system is the optimum solution for you.
Would you still like to use an additional control terminal? No problem. As an accessory to our GoControl ISO control system, we offer you two high-quality control terminal options, the T 56 and the T 84+.
T 56
Control terminal: 5.6" colour touch screen
Up to 86 function outputs (modularly expandable)
Joystick with 2 axes: Integrable and freely assignable as optional equipment
ISOBUS compatibility as standard
Freely assignable function keys as standard
Up to 5 programmable driver profiles as standard

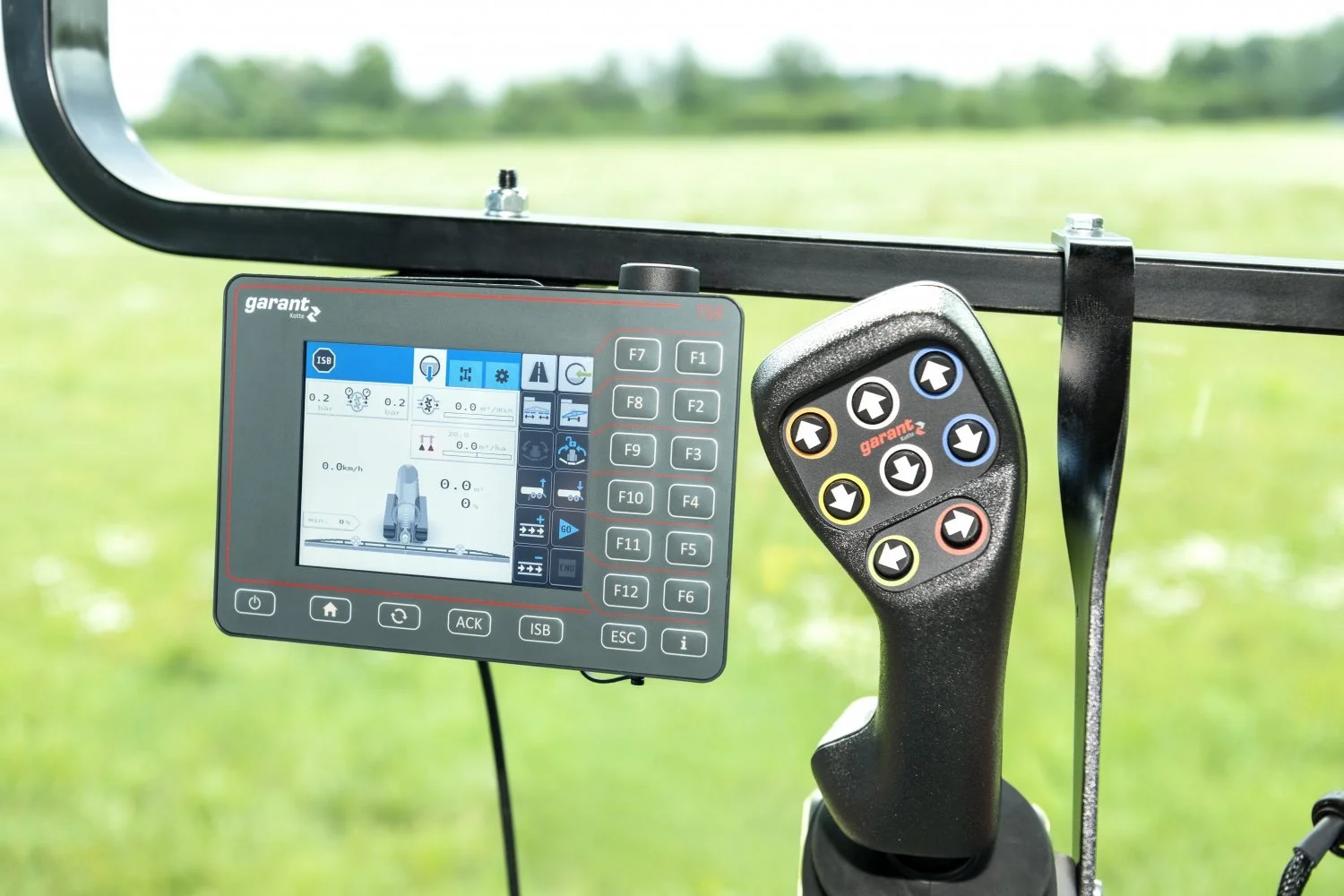

T 84+
Control terminal: 8.4" colour touch screen
Up to 86 function outputs (modularly expandable)
Joystick with 2 axes: Integrable and freely assignable as optional equipment
ISOBUS compatibility as standard
Freely assignable function keys as standard
Up to 5 programmable driver profiles as standard
For more information on Garant-kotte Slurry tankers
Kirby Ag Ltd are proud to represent Garant-Kotte throughout the UK and our sales personnel will be more than happy to discuss your requirements or any information you would like to know. Please fill in the below contact form or call 01664 813975
