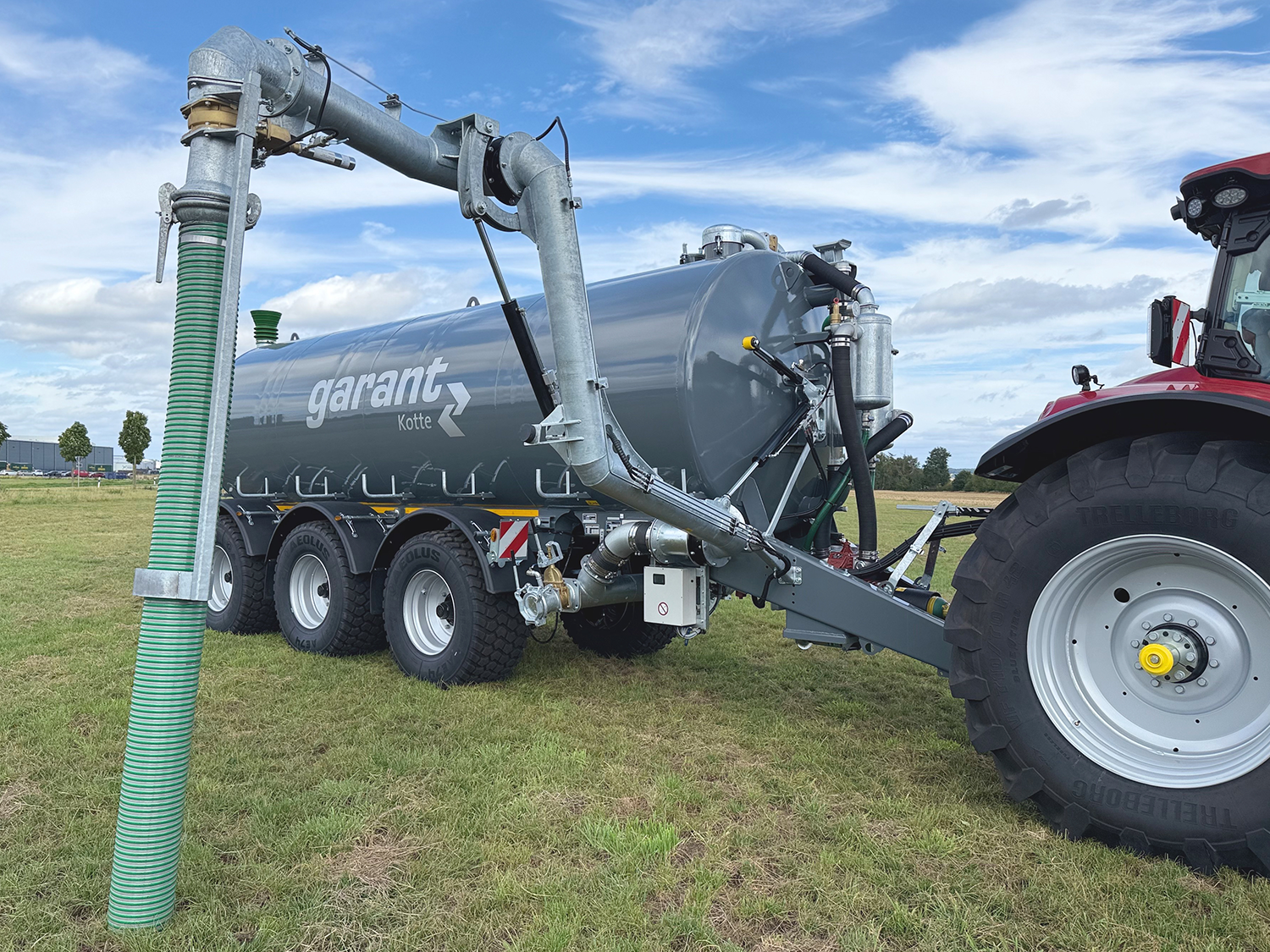

Simply fill

The garant suction arm solutions, you can fill your tank trailer easily, quickly and conveniently.

All hydraulic functions of the vehicle can be operated via an optional drum control.

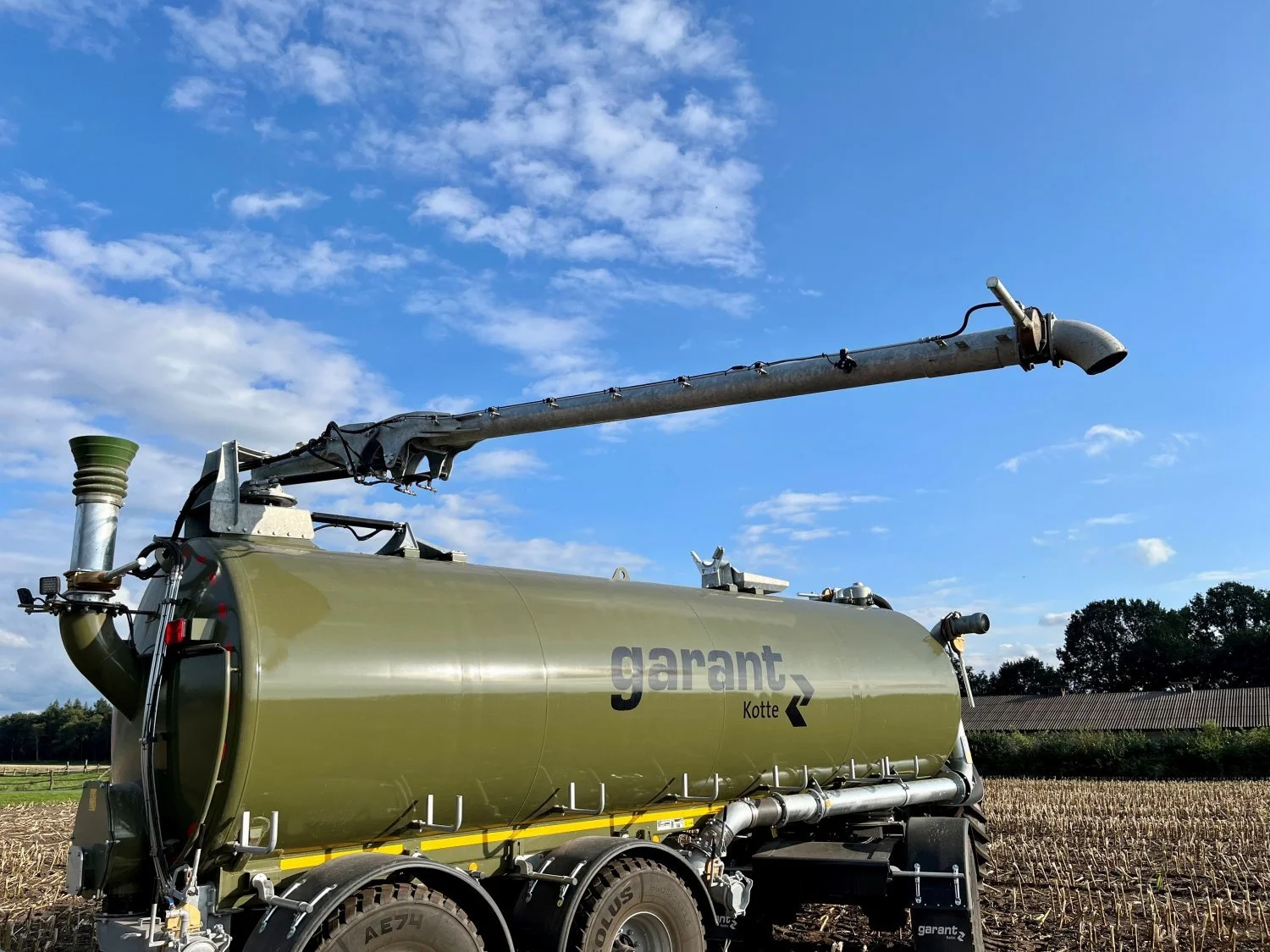

Empty cleanly

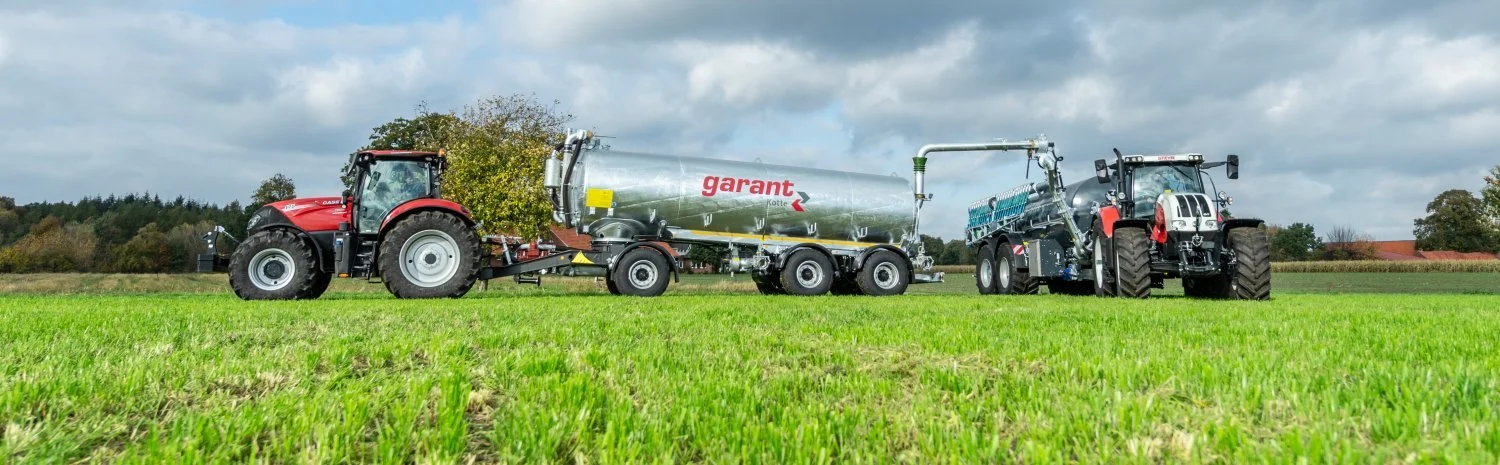

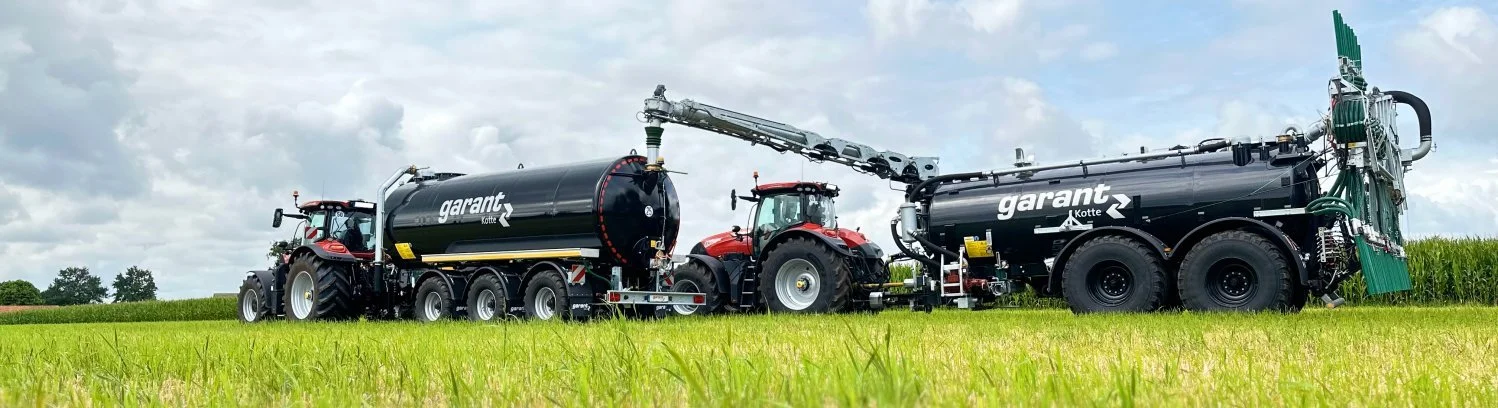

Garant-Kotte transfer tube empties the hopper quickly, cleanly and efficiently - regardless of whether the transfer takes place at the edge of the field or when transferring fertiliser on the farm.

The overloading pipe scores points with this:

• NW 150 or NW 200

• Can be swivelled to the left or right

• Drip tray with drain hose

• Optionally available with height adjustment (max. height: approx. 5.30 m)

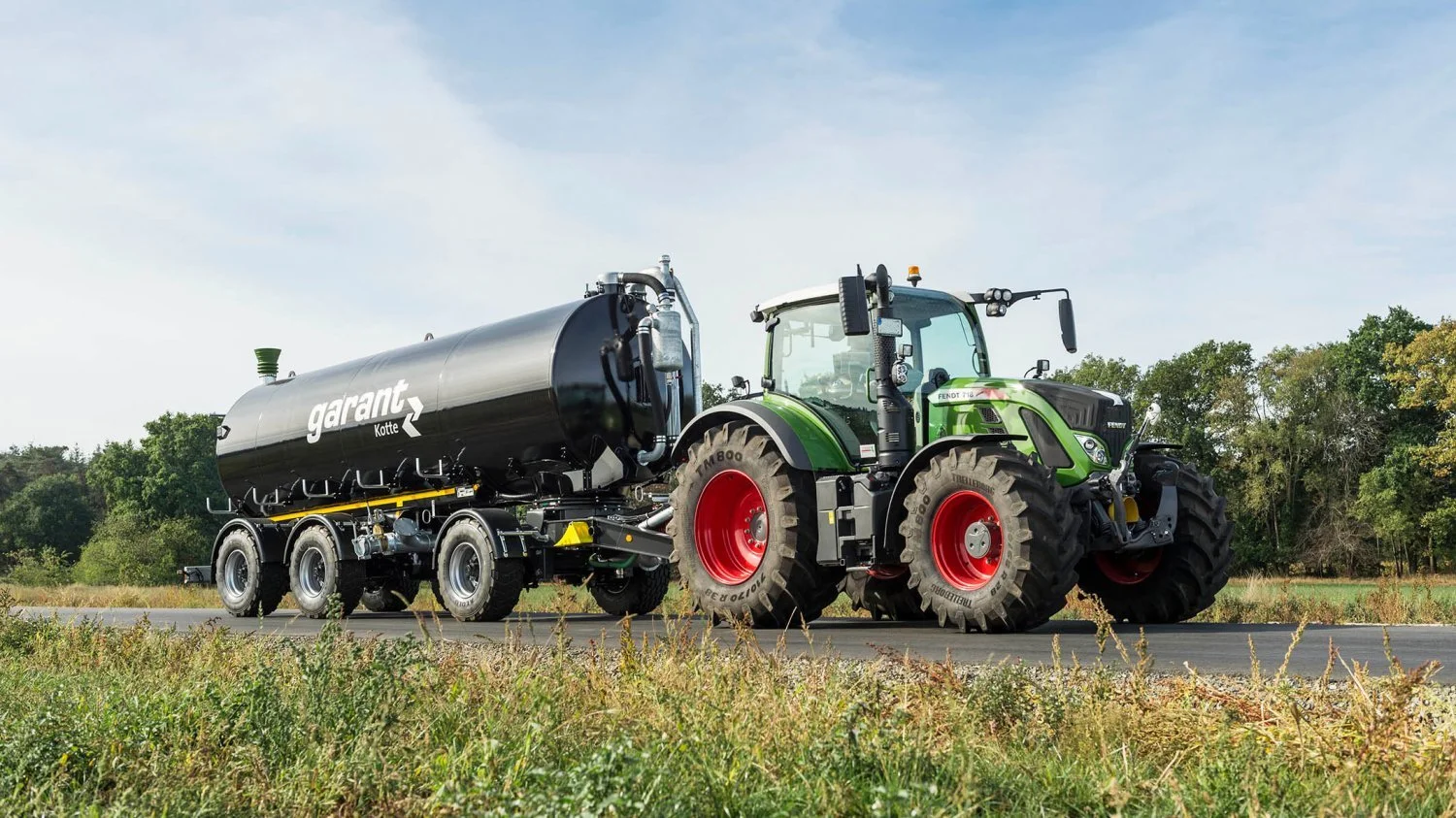

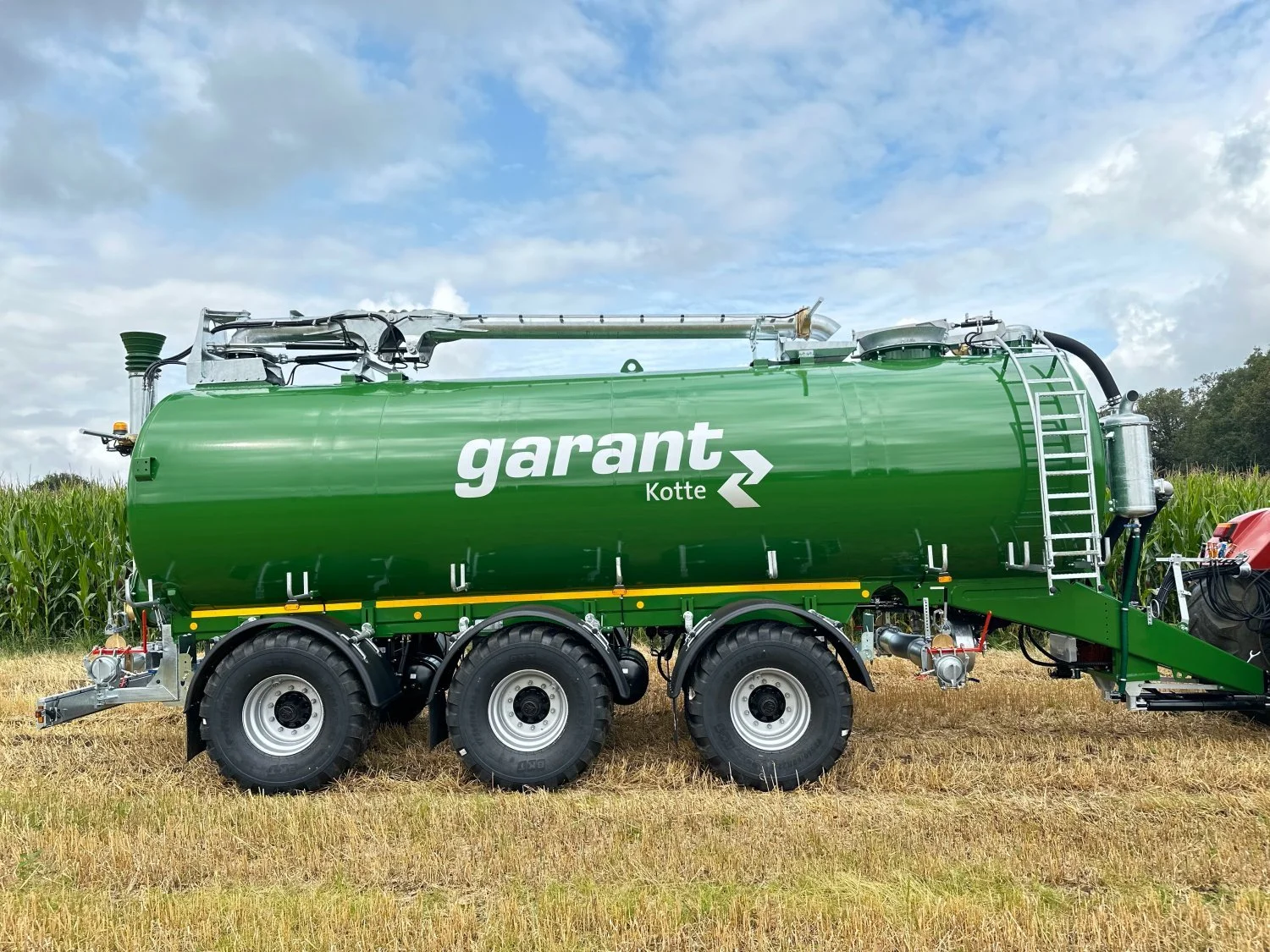

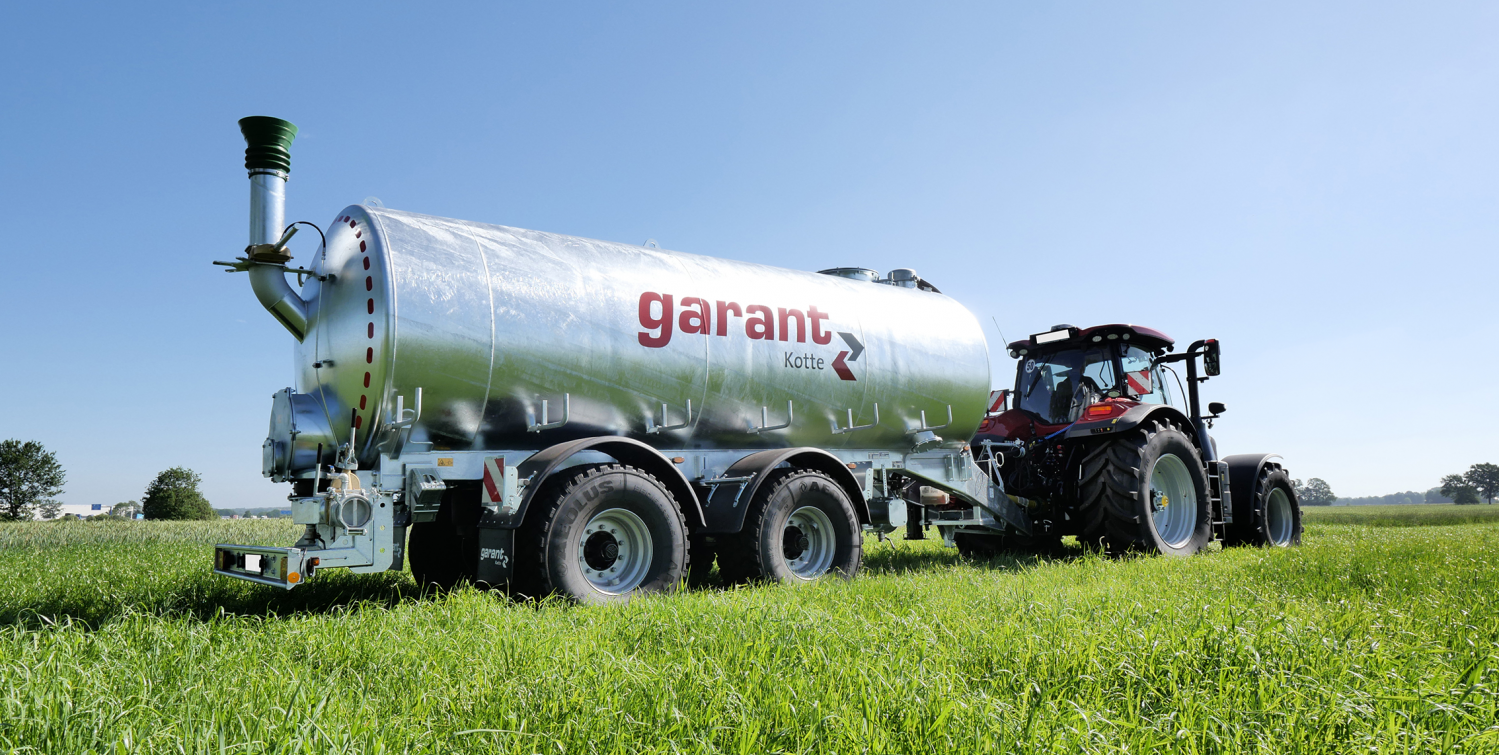

The all-terrain professional

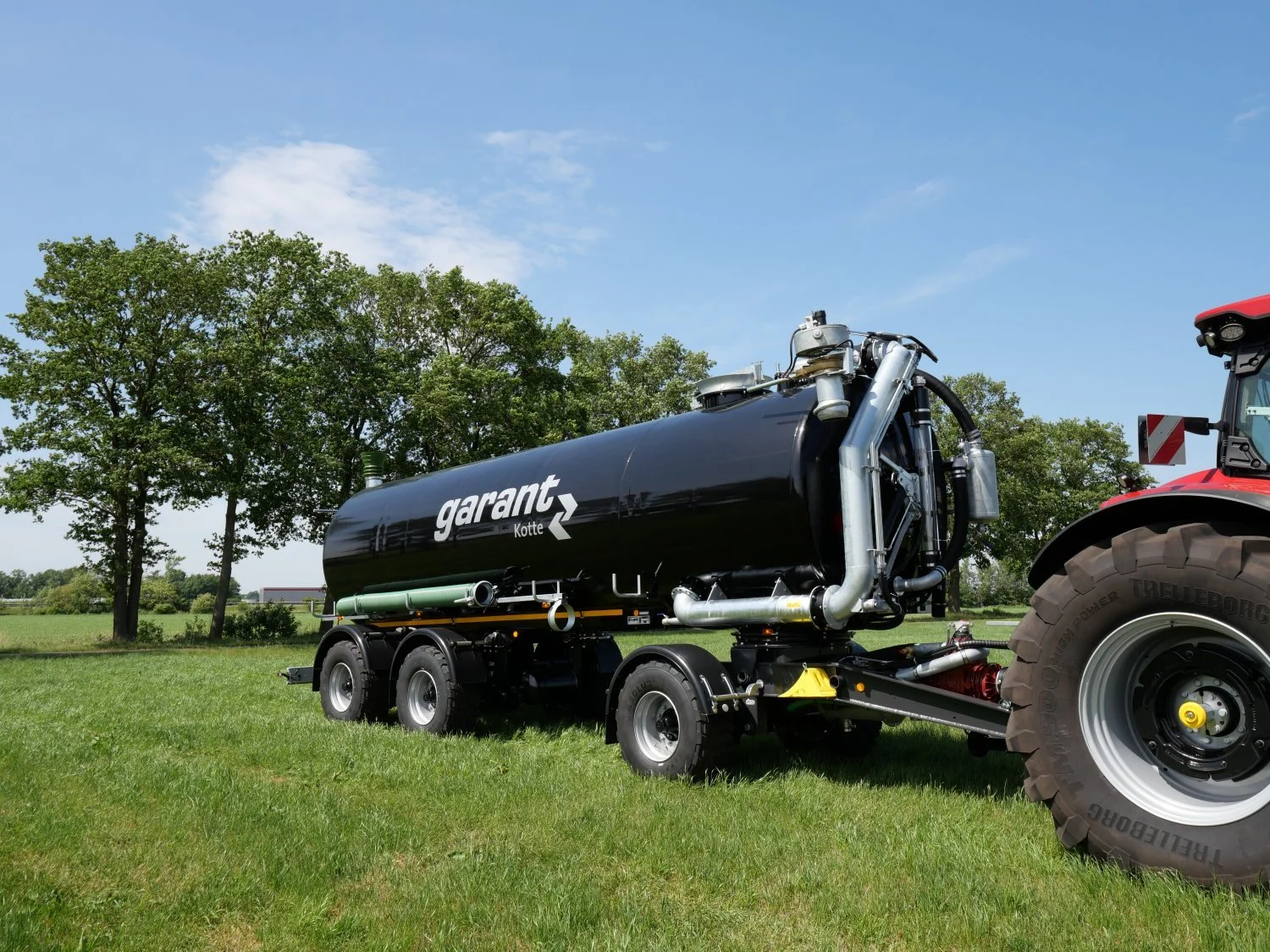

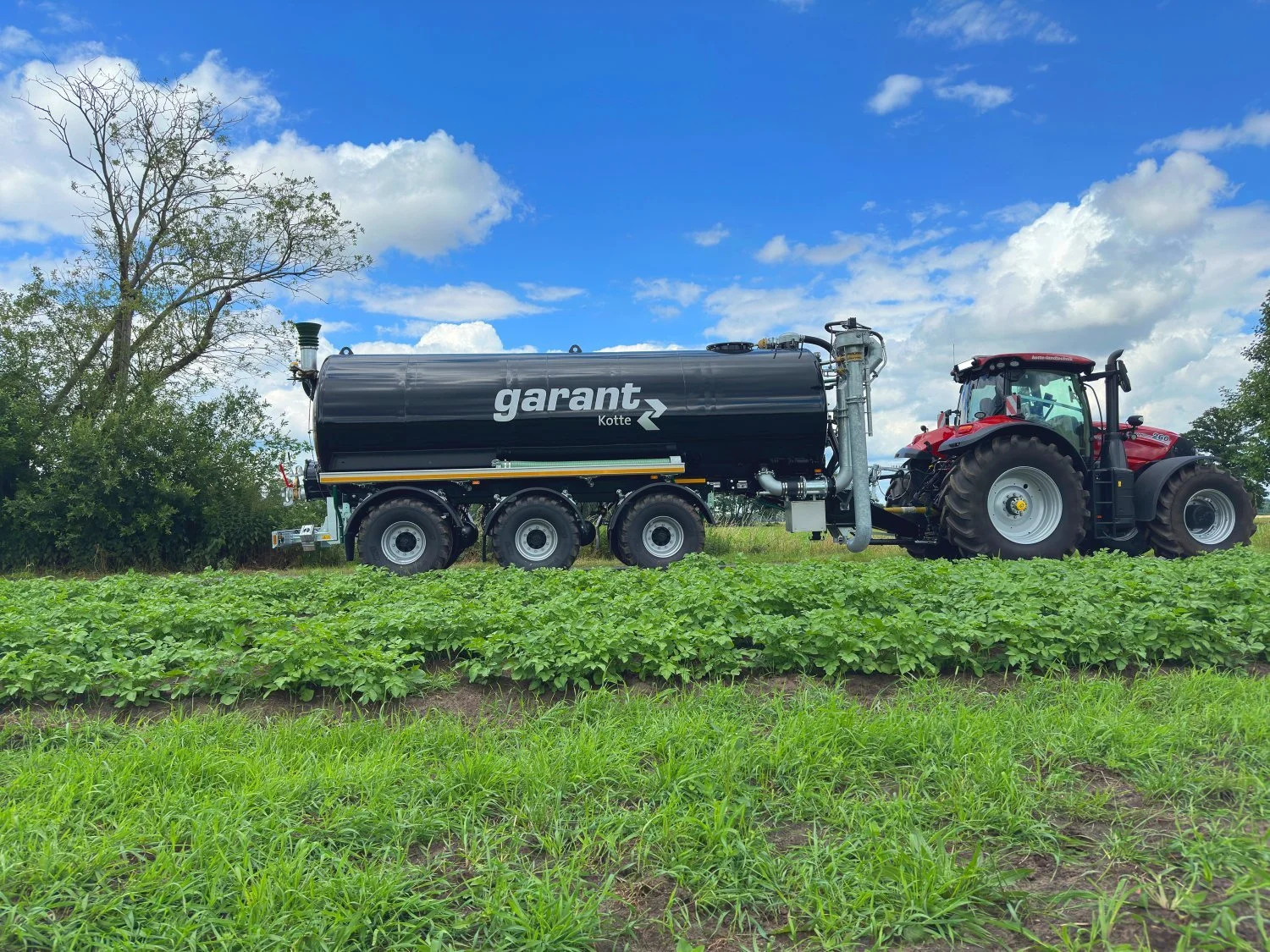

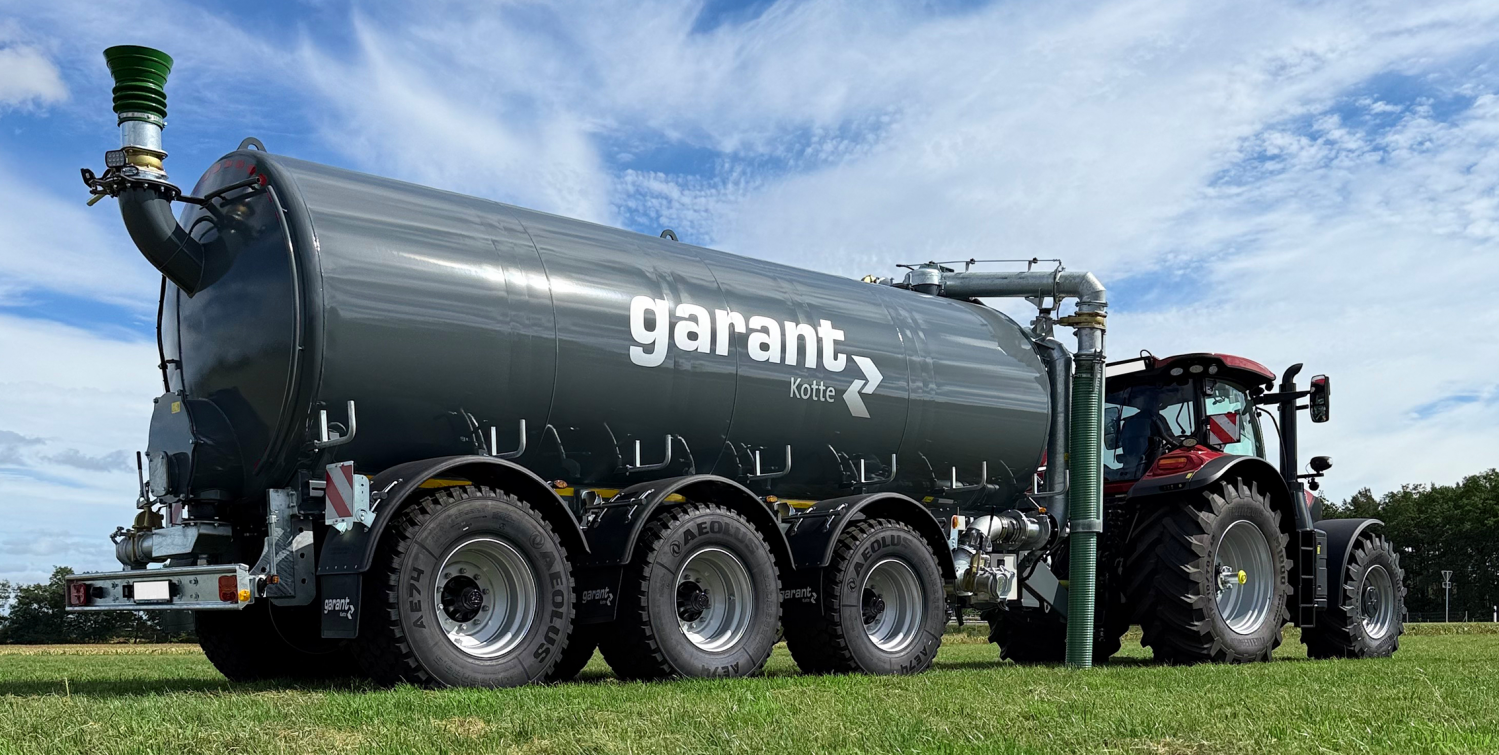

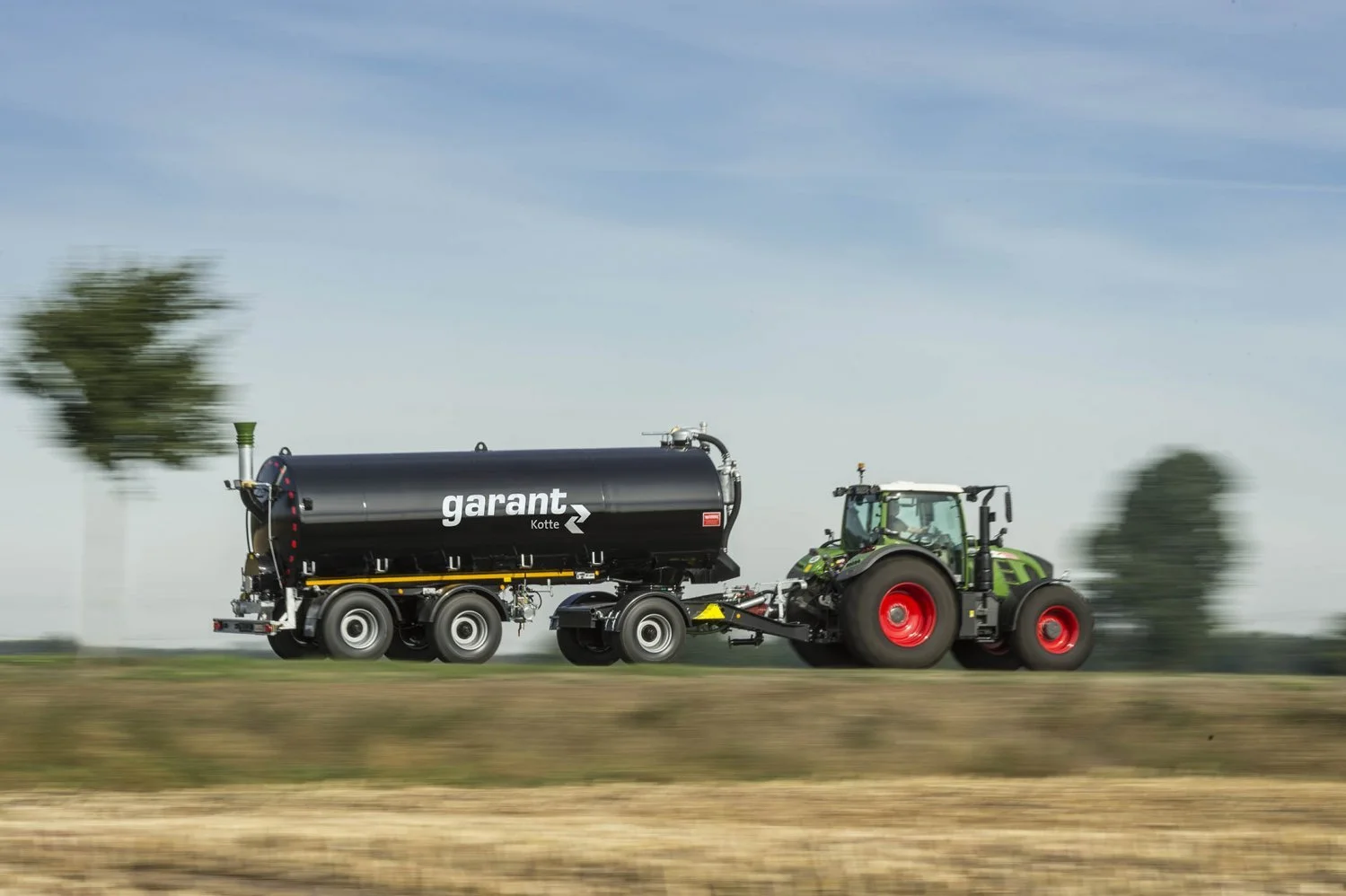

Garant-Kotte tank trailers with front carriage (TAV) provide you with the optimum technology to transport your liquid manure with the tractor from farm to field. The models are particularly suitable for all-terrain use, such that you can quickly and reliably supply the discharge vehicle even in difficult track conditions.

Our tank trailers at a glance:

• Tank sizes: 22 m³, 24 m³, 26 m³ 28 m³ or 30 m³

• Tanks made of steel (galvanised as standard)

• 3 or 4 baffles (depending on the tank size)

• 33 or 34 t gross vehicle weight rating

• Filling via pumping or vacuum technology

Fully developed and safe

Garant-Kotte haa been incorporating their extensive know-how into the development and design of the tanker trailer with front carriage for many years – this means that Garant-Kotte provides you with a fully developed product. In combination with the air suspension, the transfer of the tongue load from front carriage to tractor enables a gross vehicle weight rating of 33 or 34 t (depending on the admissible speed limit).

Your safety is our concern – that is why the baffles of the TAV are built in accordance with the current DIN EN 707 safety standard. The TAV 22 is equipped with three baffles, while the other TAV models have four each.

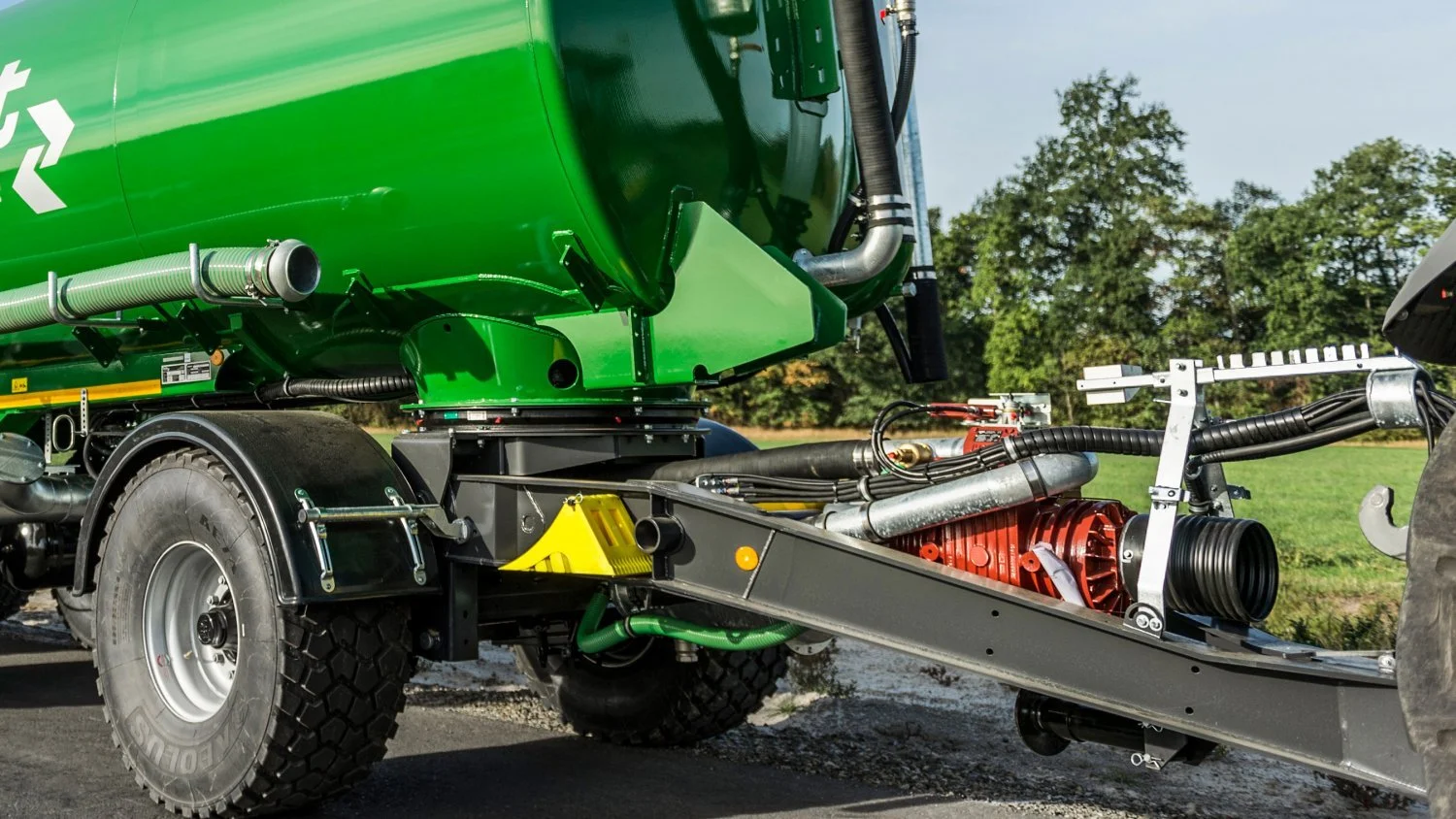

Intelligent technology

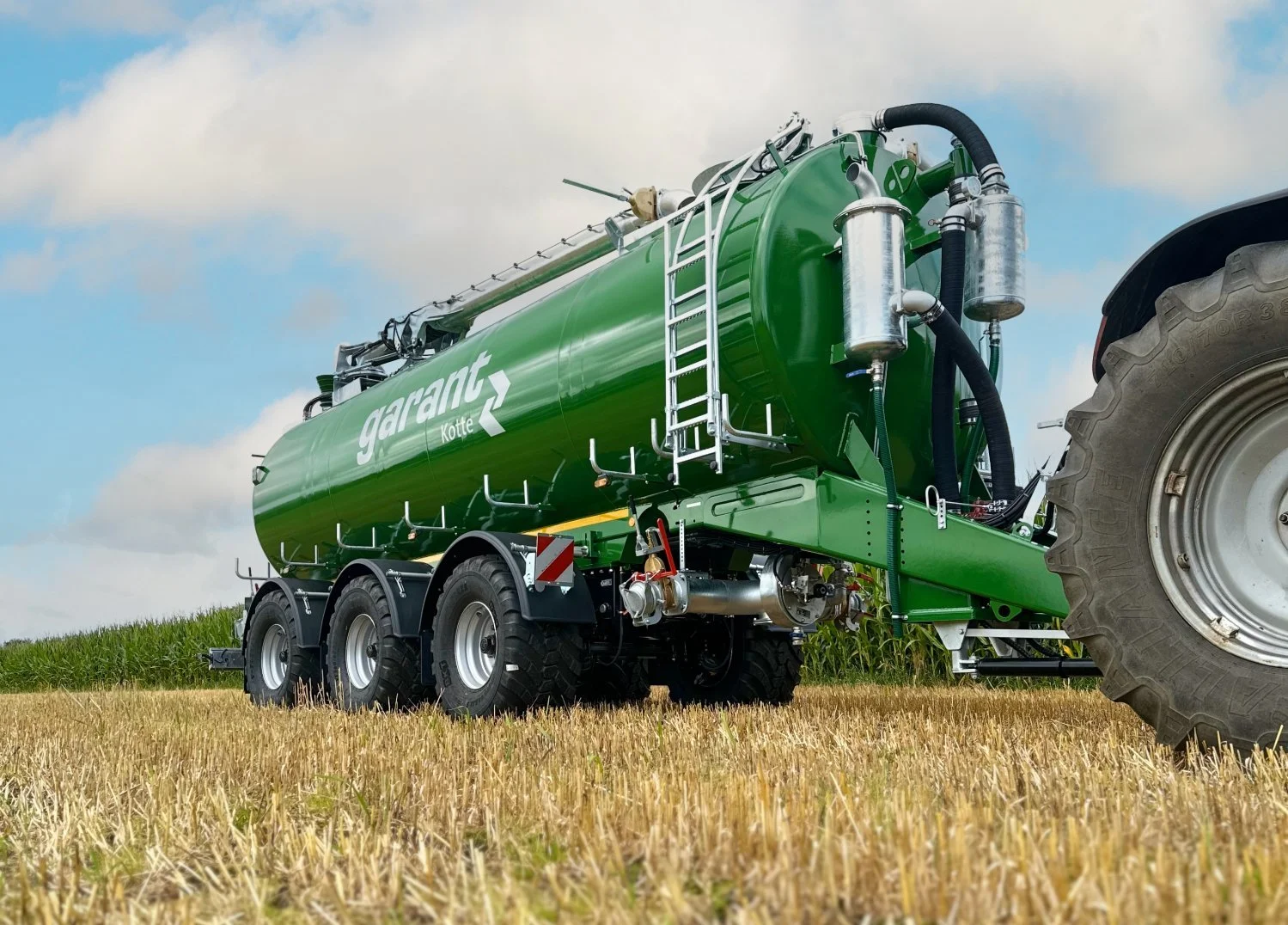

As the vacuum compressor with the patented rotary transmission is mechanically driven, the whole hydraulic performance of the tractor is available for the filling aid.

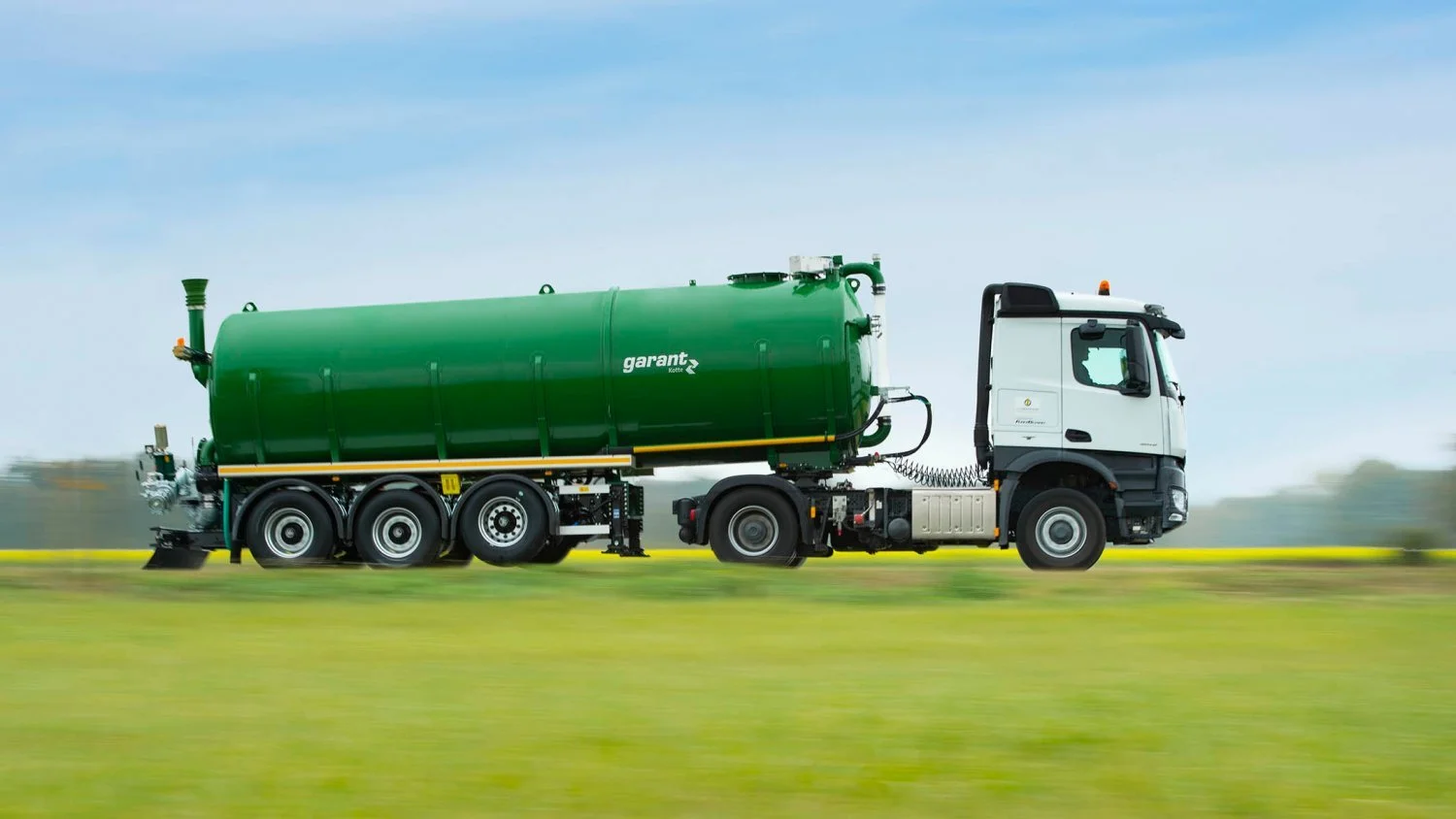

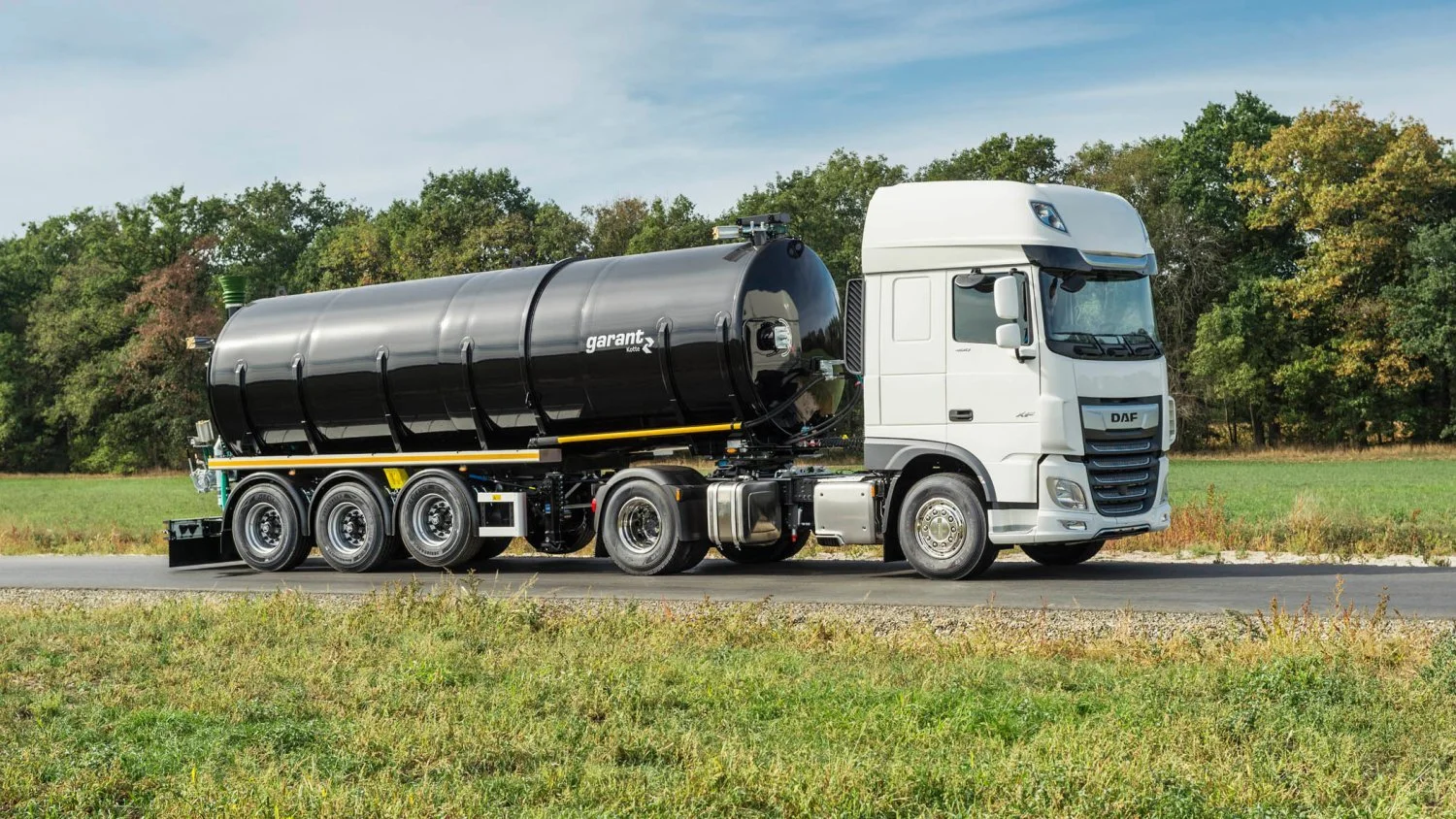

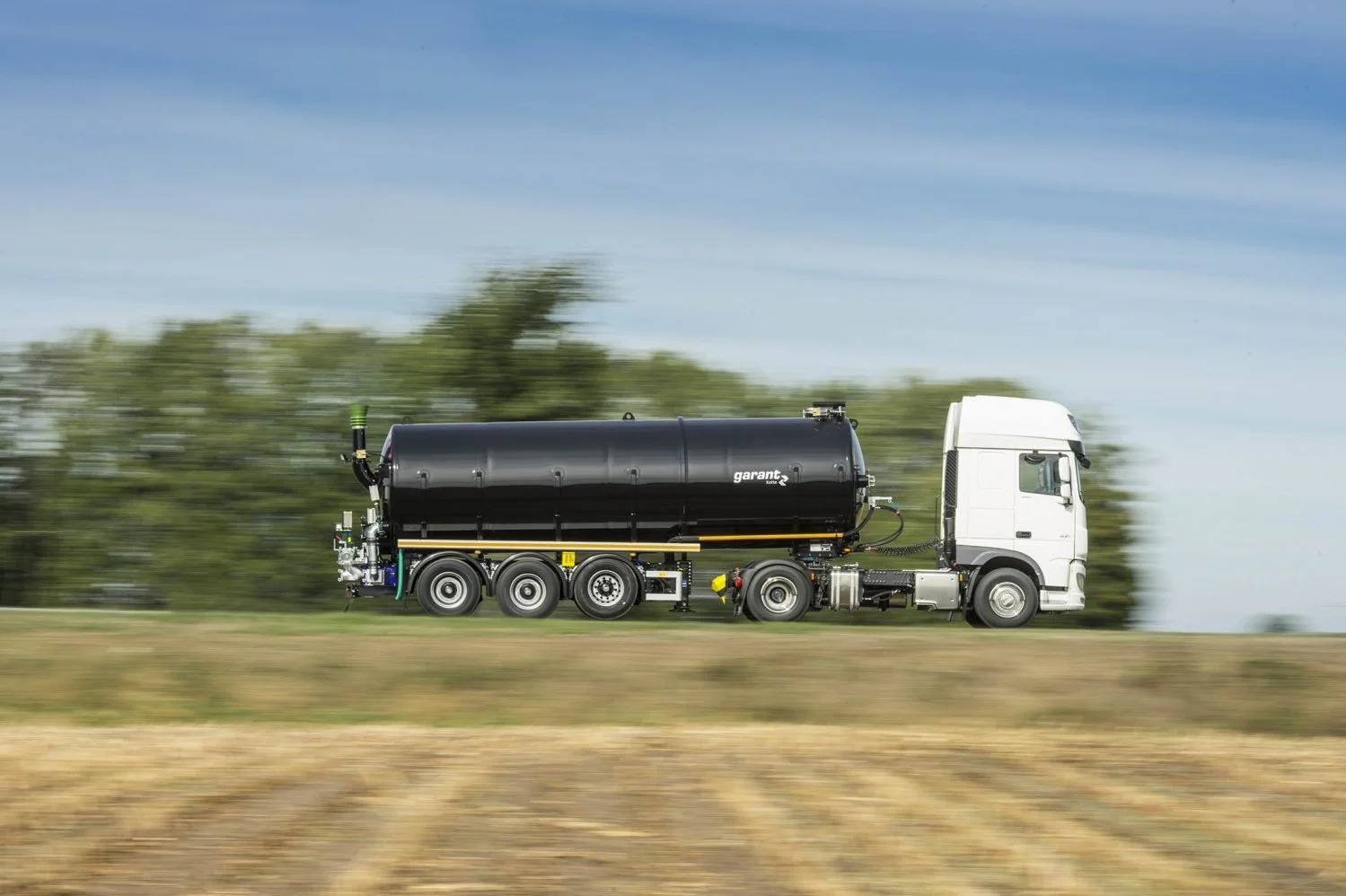

The sprinter

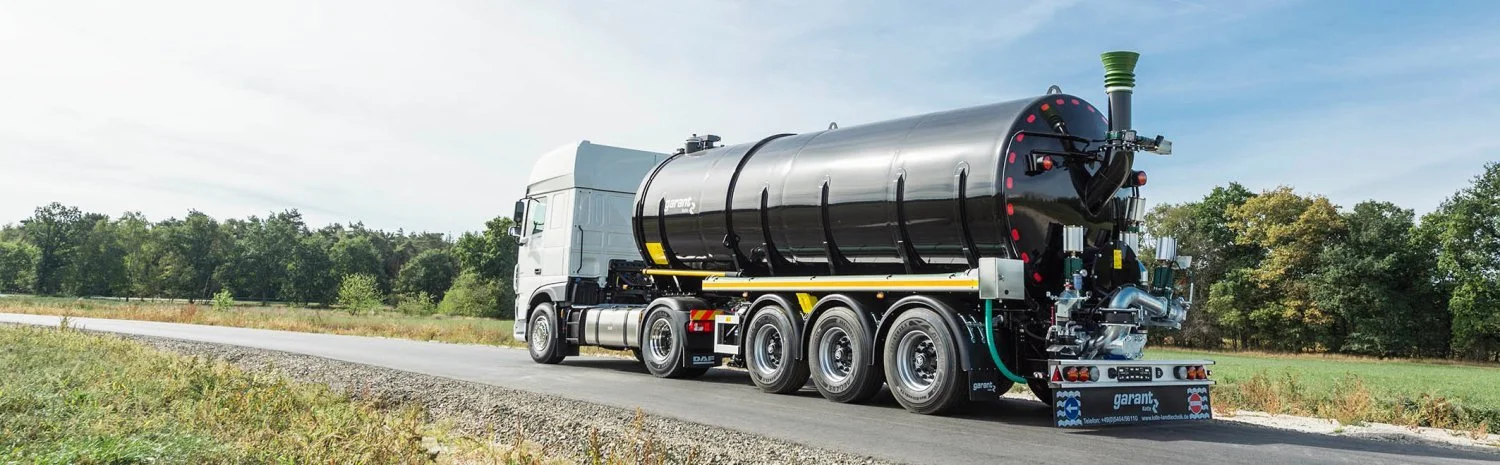

Garant-Kotte tank semi-trailers (TSA) you transport your liquid manure quickly and economically, particularly over long distances.

Our tank semi-trailers at a glance:

• Tank sizes: 28 or 30 m³

• Gross vehicle weight rating:36t

• Steel or stainless steel tanks

• Filling via pumping or vacuum technology

Economically and safely en route

Due to their compact design, the tank semi-trailers are perfectly suitable for use on the road. The high degree of reliability and the high-quality customised equipment enable efficient and economic workflows.

Particularly at high speeds, sloshing movements in the tank might become dangerous. Your safety is our concern – that is why we mount four baffles according to the DIN EN 707 standard

Uncompromising comfort

Garant-Kotte exclusively equip our vehicles with BPW axles proven millions of times. The air suspension as well as the steering and lift axle provide you with maximum comfort.

Moving more

Garant-Kotte tank semi-trailers are fitted with high-quality pneumatic gate valves and a comfortable and reliable automatic shut-off system (agitating mode and subsequent closure of valve).

A pneumatic interlinking of the valves prevents the creation of overpressure or a vacuum in the tank. A pressure and suction relief valve mounted as standard provides additional safety.

Efficient discharge

The docking funnel at the back panel is positioned such that the discharge vehicle can efficiently discharge the slurry.

A pump sump ensures that the tank is completely emptied.

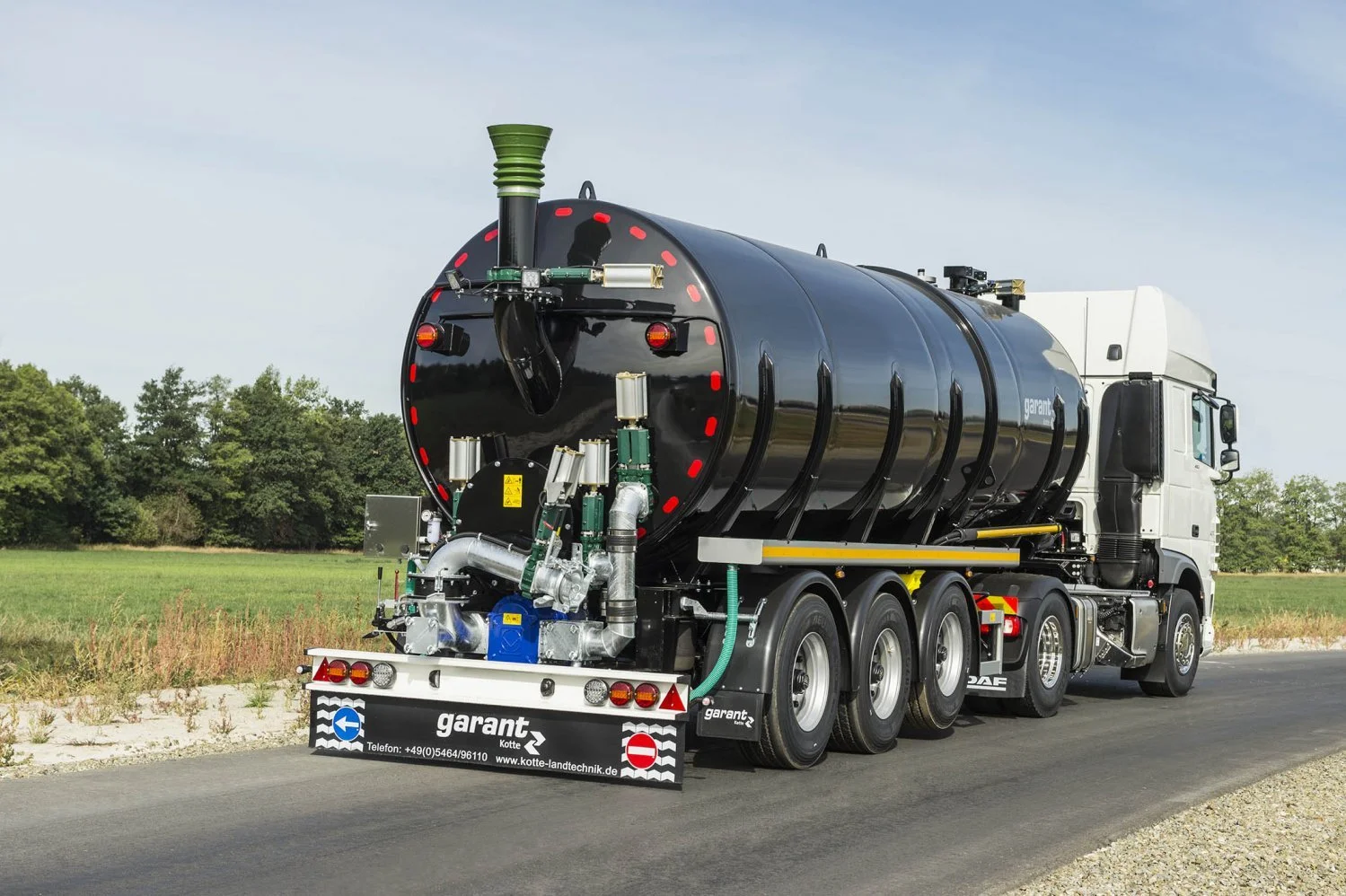

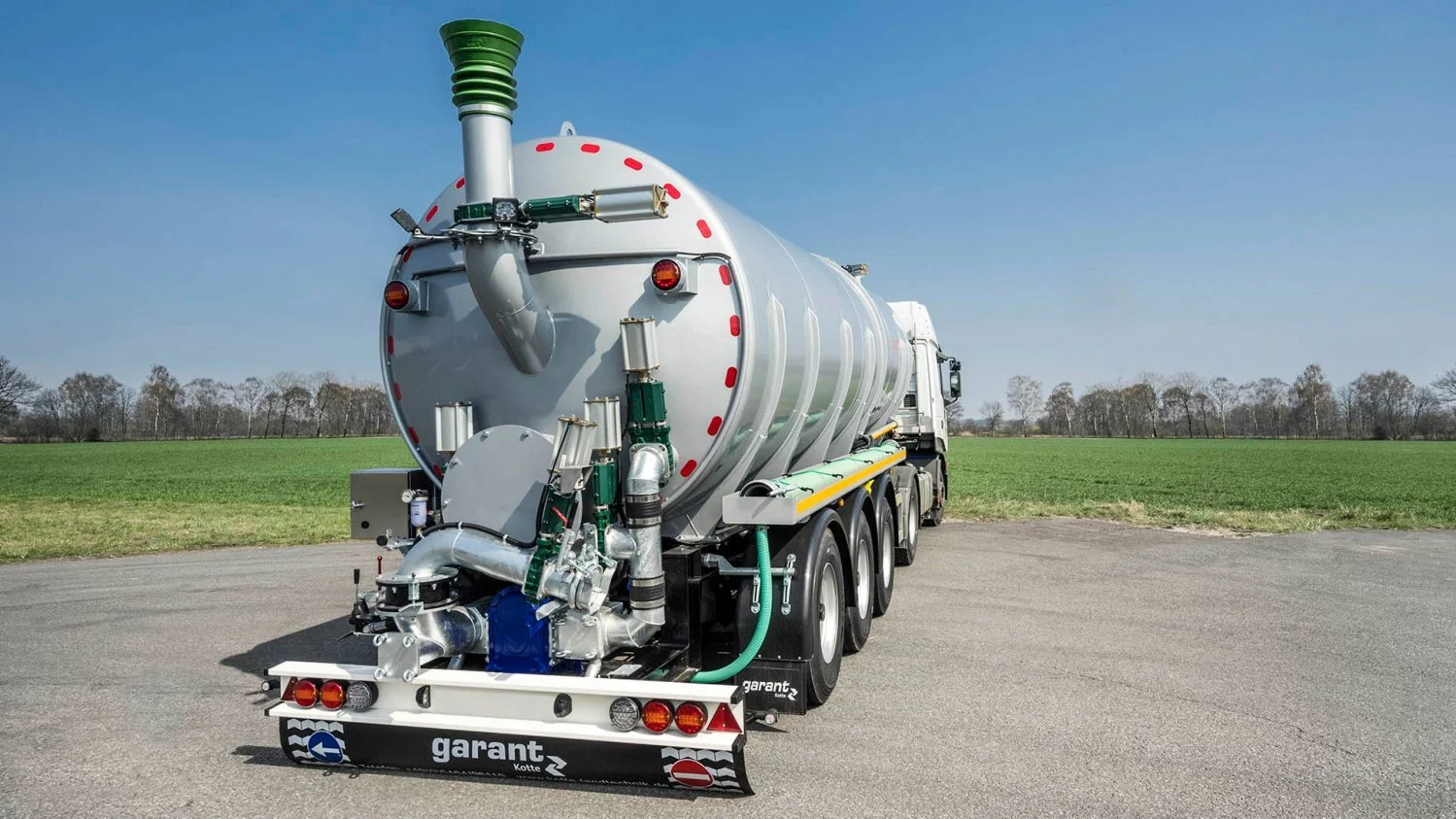

Perfect docking

The docking funnels can be positioned at the top and/or bottom of the tank back panel, as needed. NW 200 or NW 250 are the alternatives, while the conduit mounted at the rear of the tank is manufactured in NW 250 as standard.

And you also have the choice of shut-off valves: We have the mechanical, hydraulic and pneumatic version available.

The docking device at the top of the back panel is equipped with a standard pump sump to ensure that the tank is always emptied completely.

Easy filling

Garant suction spout solutions help you to easily, quickly and conveniently fill your tank trailer.

All hydraulic functions of the vehicle can be operated via an optional remote control.

Clean emptying

Our transfer tube ensures fast, clean and efficient emptying of the tank – no matter whether the transfer is carried out at the edge of a field or during transfer of liquid manure on the farm.

These are the features the transfer tube scores with:

• NW 150 or NW 200

• Can be swivelled to the left or right

• Drip tray with drain hose

• Available with height adjustment as optional equipment (max. height: 6 m)
